Regular price $850.00
/
Shipping calculated at checkout.

Color
Size
Only 2 items in stock!

The Florida Man is Leo Rodger's signature frame.

The Florida Man’s roots can be very loosely traced back to the Bombora. If you have been following along with Leo, you have likely seen his stunner of a Bombora build that he rips around on. Using its platform as a jump off point, he and Matt went to town designing Leo a bike that is truly his own. What came out of the design process is a no-nonsense fixed gear frame that can take a big ol’ tire; a “country fixed” if you’re from Nutmeg Country. Great to skid around the city, or burn your legs up on a gravel road in the middle of nowhere. Its tri-color fade will have you feeling like you’re gazing out at a sunset over Tampa Bay every time you give it a glance. The artwork is a homage to Leo and his home state Florida and was designed by Cheech’s sister Patty (@whose.backyard on the gram).

Build Notes:

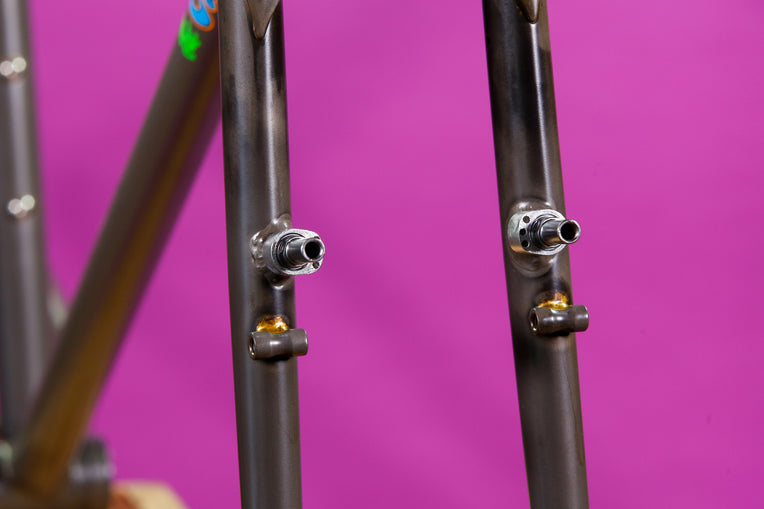

The Florida Man features track dropouts and 130mm spacing out back and your standard 100mm spacing up front with quick release/bolt-on dropouts. The fork features our crown with braze-ons on the top of it and two braze-ons on the fork legs for mounting a bag support or maybe your Pec Dec. The Florida Man can be built up using a 650b or 700c wheel set. Your max tire clearances will be 27.5×2.4 or 29×2.0. Max chainring size is 44t.

The Florida Man now features removable brake posts! They're in the 650b/27.5" canti/v-brake position on all frames, so if you want to go 700 with a brake you will have to figure out a side or center pull situation to put up front, or maybe Paul Motolites will make it happen, but I don't know.

If fixed isn’t your thing you could throw a 130mm spaced coaster brake wheel in the back and “klunk” your little heart out. You could also run an internally geared coaster brake hub. Hell, you could even throw a drum brake hub on the front if you really wanted to “klunk” it up.

ED Coated (Unless Matte Clear) to help protect it from the elements and inhibit internal corrosion. This doesn't mean you're free to ride it into the ocean though.

We do not recommend you running more than ~40mm of spacers. If you need more than that, you should consider sizing up.

HEADSET NOT INCLUDED

Details:

Handmade in Taiwan using Heat Treated Chromoly

Tig Welded

Color- Matte Raw or Pink/ Blue Fade

Sizes- Extra Small 52cm | Small 54cm | Medium 56cm | Large 58cm | Extra Large 60cm | Extra Extra Large 62cm

Head Tube Diameter- 1 1/8" (Threadless steerer)

Bottom Bracket- 68mm English (BSA) Threaded

Steerer Tube Length- 400mm

Fork Spacing- 9x100mm

Rear End Spacing- 130mm w/ rear facing horizontal dropouts

 Seat Post Diameter- 27.2mm

Fork Axle to crown - 395mm

Weight- Frame- 2.06 kg or 4 lbs 9oz | Fork (Uncut Steerer)- 1.18kg or 2 lbs 10oz

Geometry Chart (Metric) (Millimeters)

XS Small Medium Large XL XXL
Top Tube
  Effective 520 540 560 580 600 620
Center to Center 502 525 546 569 594 619
Slope 18.7° 14.1° 9.5° 6.1° 3.5° 1.2º
-------------------------------------
Seat Tube
  Center to Top 456 502 543 574 629 670
Center to Center 408 455 494 529 581 622
-------------------------------------
Head Tube Angle 69.5° 70° 71° 71° 71° 71°
Seat Tube Angle 74.5° 74° 73° 73° 73° 73°
-------------------------------------
Head Tube
  Length 121 132 153 177 208 241
Stack from Bottom Bracket 540 553 576 599 628 660
Reach from Bottom Bracket 365 378 382 395 406 416
-------------------------------------
Chainstay Length 425 425 425 425 425
-------------------------------------
Bottom Bracket
Height 290 290 290 290 290 290
Drop 64 64 64 64 64 64
-------------------------------------
Standover 747 775 804 832 872 907
-------------------------------------
Rake 48 48 48 48 48 48
Trail 81 78 71 71 71 71
-------------------------------------
Wheelbase 1008 1020 1023 1043 1064 1085
