Name: EPO
Brand: Crust Bikes
Price: 2600.0 USD
Availability: OutOfStock

Geometry Chart (Metric) (Millimeters)

	XS	Small	Medium	Large	XL	XXL
Top Tube
Effective	520	540	560	580	600	620
Center to Center	505	528	550	570	592	612
Slope	7°	5°	3.5°	3.5°	3°	2.8°
Seat Tube
Center to Top	510	525	560	590	620	640
Head Tube Angle	71°	71°	71.5°	72°	72°	72°
Seat Tube Angle	74°	74°	73.5°	73°	73°	73°
Head Tube
Length	110	115	134	163	187	210
Stack from Bottom Bracket	525	544	566	605	624	646
Reach from Bottom Bracket	368	382	391	395	408	433
Chainstay Length	420	420	420	420	420	420
Bottom Bracket
Height	265	265	265	265	265	265
Drop	80	80	80	80	80	80
Standover	755	768	795	826	851	872
Rake	47	47	47	47	47	47
Trail	71	71	68	64	64	64
Wheelbase	975	997	1008	1019	1037	1071

Geometry Chart (Imperial) (Inches)

	XS	Small	Medium	Large	XL	XXL
Top Tube
Effective	20.5	21.3	22.0	22.8	23.6	24.4
Center to Center	19.9	20.8	21.7	22.4	23.3	24.1
Slope	7°	5°	3.5°	3.5°	3°	2.8°
Seat Tube
Center to Top	20.1	20.7	22.0	23.2	24.4	25.2
Head Tube Angle	71°	71°	71.5°	72°	72°	72°
Seat Tube Angle	74°	74°	73.5°	73°	73°	73°
Head Tube
Length	4.3	4.5	5.3	6.4	7.4	8.3
Stack from Bottom Bracket	20.7	21.4	22.3	23.8	24.6	25.4
Reach from Bottom Bracket	14.5	15.0	15.4	15.6	16.1	17.0
Chainstay Length	16.5	16.5	16.5	16.5	16.5	16.5
Bottom Bracket
Height	10.4	10.4	10.4	10.4	10.4	10.4
Drop	3.1	3.1	3.1	3.1	3.1	3.1
Standover	29.7	30.2	31.3	32.5	33.5	34.3
Rake	1.9	1.9	1.9	1.9	1.9	1.9
Trail	2.8	2.8	2.7	2.5	2.5	2.5
Wheelbase	38.4	39.3	39.7	40.1	40.8	42.2

$2,600.00

Shipping calculated at checkout.

Geometry Chart (Metric) (Millimeters)

	XS	Small	Medium	Large	XL	XXL
Top Tube
Effective	520	540	560	580	600	620
Center to Center	505	528	550	570	592	612
Slope	7°	5°	3.5°	3.5°	3°	2.8°
Seat Tube
Center to Top	510	525	560	590	620	640
Head Tube Angle	71°	71°	71.5°	72°	72°	72°
Seat Tube Angle	74°	74°	73.5°	73°	73°	73°
Head Tube
Length	110	115	134	163	187	210
Stack from Bottom Bracket	525	544	566	605	624	646
Reach from Bottom Bracket	368	382	391	395	408	433
Chainstay Length	420	420	420	420	420	420
Bottom Bracket
Height	265	265	265	265	265	265
Drop	80	80	80	80	80	80
Standover	755	768	795	826	851	872
Rake	47	47	47	47	47	47
Trail	71	71	68	64	64	64
Wheelbase	975	997	1008	1019	1037	1071

Geometry Chart (Imperial) (Inches)

	XS	Small	Medium	Large	XL	XXL
Top Tube
Effective	20.5	21.3	22.0	22.8	23.6	24.4
Center to Center	19.9	20.8	21.7	22.4	23.3	24.1
Slope	7°	5°	3.5°	3.5°	3°	2.8°
Seat Tube
Center to Top	20.1	20.7	22.0	23.2	24.4	25.2
Head Tube Angle	71°	71°	71.5°	72°	72°	72°
Seat Tube Angle	74°	74°	73.5°	73°	73°	73°
Head Tube
Length	4.3	4.5	5.3	6.4	7.4	8.3
Stack from Bottom Bracket	20.7	21.4	22.3	23.8	24.6	25.4
Reach from Bottom Bracket	14.5	15.0	15.4	15.6	16.1	17.0
Chainstay Length	16.5	16.5	16.5	16.5	16.5	16.5
Bottom Bracket
Height	10.4	10.4	10.4	10.4	10.4	10.4
Drop	3.1	3.1	3.1	3.1	3.1	3.1
Standover	29.7	30.2	31.3	32.5	33.5	34.3
Rake	1.9	1.9	1.9	1.9	1.9	1.9
Trail	2.8	2.8	2.7	2.5	2.5	2.5
Wheelbase	38.4	39.3	39.7	40.1	40.8	42.2

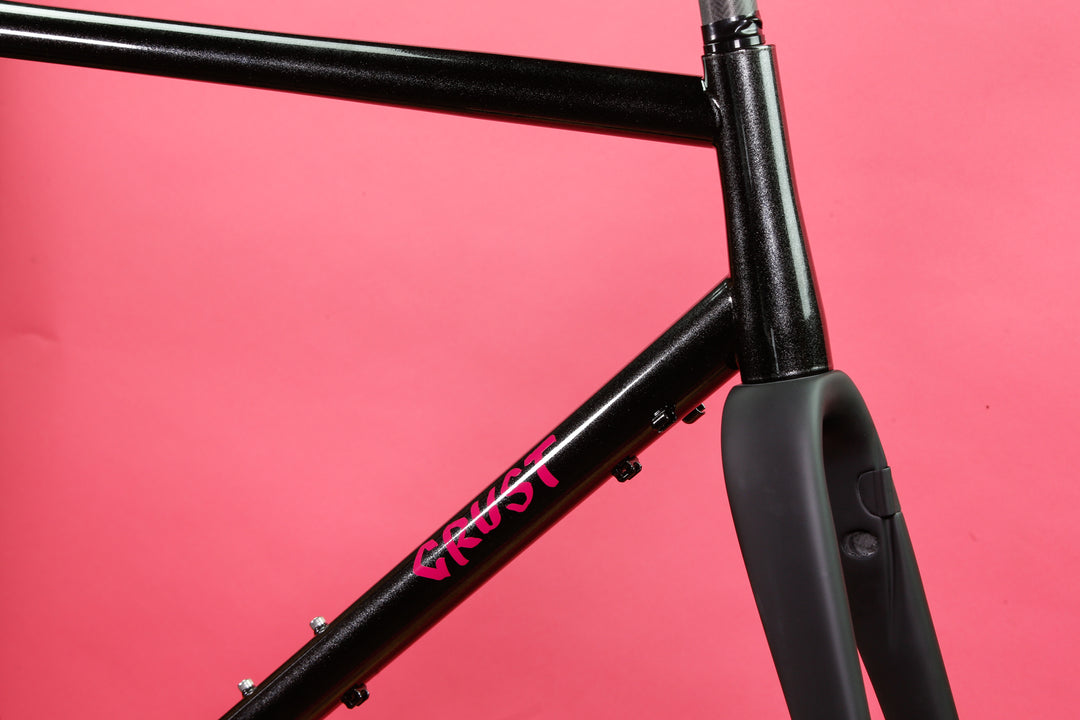

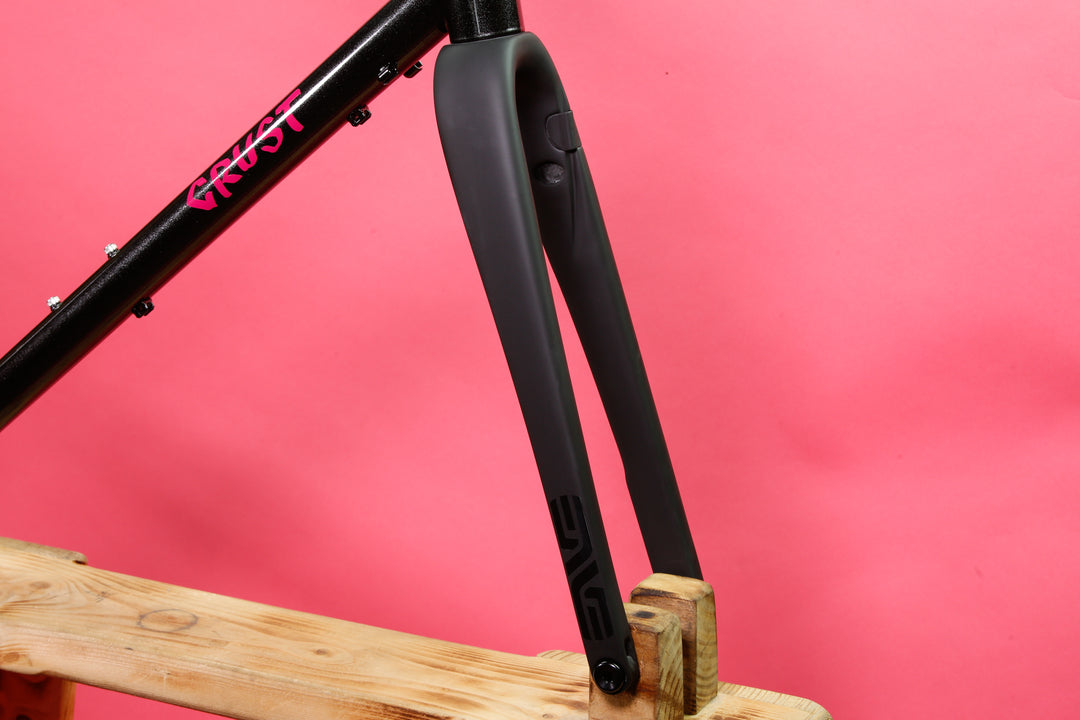

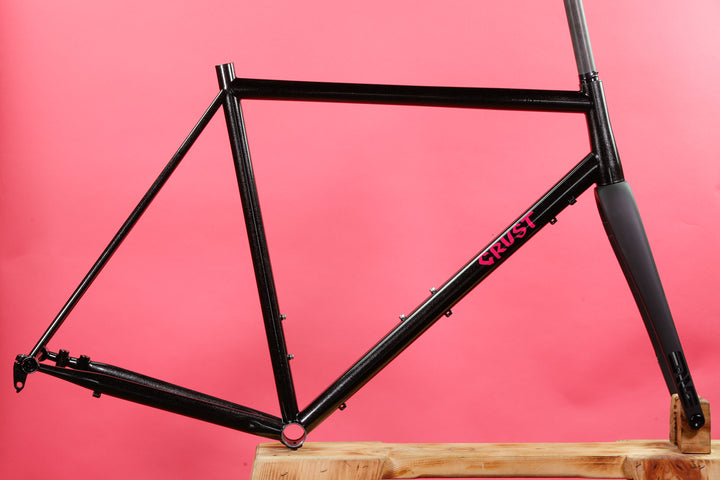

The EPO is a US Made, Italian steel, road frame. Actually, it's 38c max tire clearance makes it an All-Road bike, right? Who knows anymore. Anyway...the EPO is built by Darren Larkin up in Connecticut in very small batches. It's made up of an assortment of the finest Columbus steel available. The fine Italian tubes provide a ride quality that will have you wanting to push this bike like you've been juiced up and are breaking away in the '99 Tour de France. Each frame comes paired up with an ENVE AR Disc Fork to match the frame's tire clearance and keep the front end light and nimble.

Build Notes:

!!IMPORTANT!! These are available either with OR without shifter cable guides for those of you devoted to the eTap. When selecting your frame size, if you want shift cable guides choose MECHANICAL, if you're running eTap for life then choose ETAP.

Designed around a 700c wheelset with a max tire size of 38c. You could set it up 650 as well and have around the same tire clearance.

Max Chainring Sizes: 1X= 50t | 2X= 53/39t

Flat Mount Brake Calipers front and rear

Max Rotor Sizes: 160 Front | 160 Rear

Front and rear thru axles are included

This frame is not ED Coated and has not been treated internally. If you feel the need to do so, do it.

Maximum amount of spacers on steerer 40mm (this does not include the stem)

HEADSET NOT INCLUDED

Details:

Handmade in USA by Darren Larkin

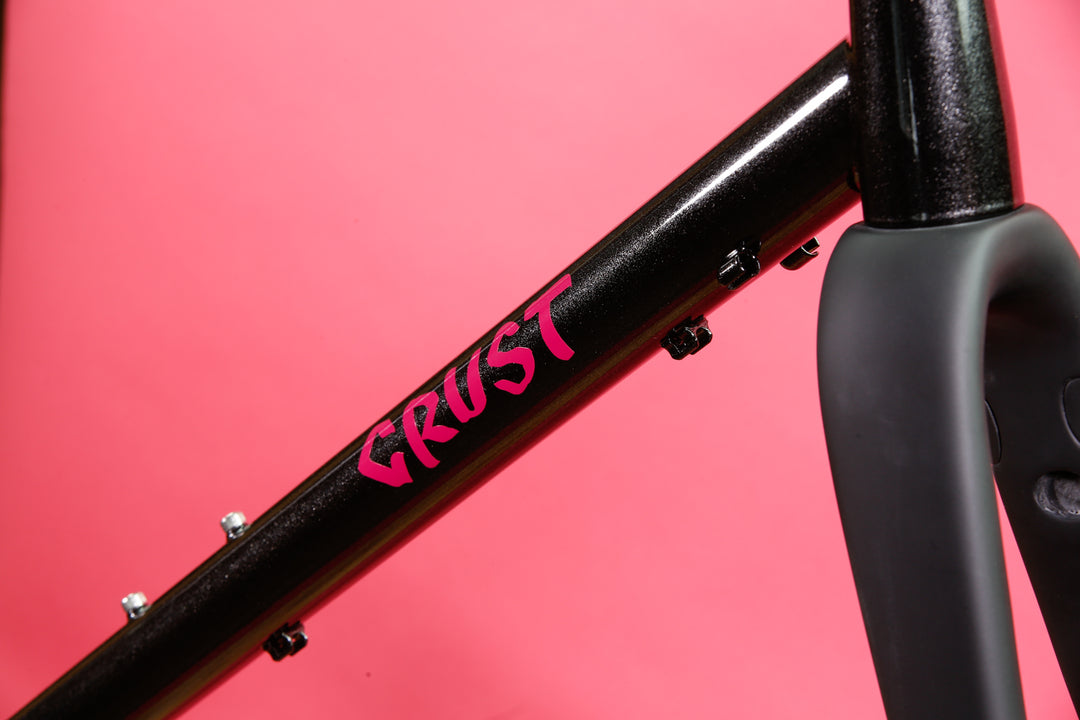

Tig Welded High End Columbus Steel Frame with Carbon Fork

Color- Silver Flake Metallic Black

Sizes- Extra Small 52cm | Small 54cm | Medium 56cm | Large 58cm

Head Tube Diameter- Tapered 34/44 (1 1/8" to 1 1/4" Threadless steerer)

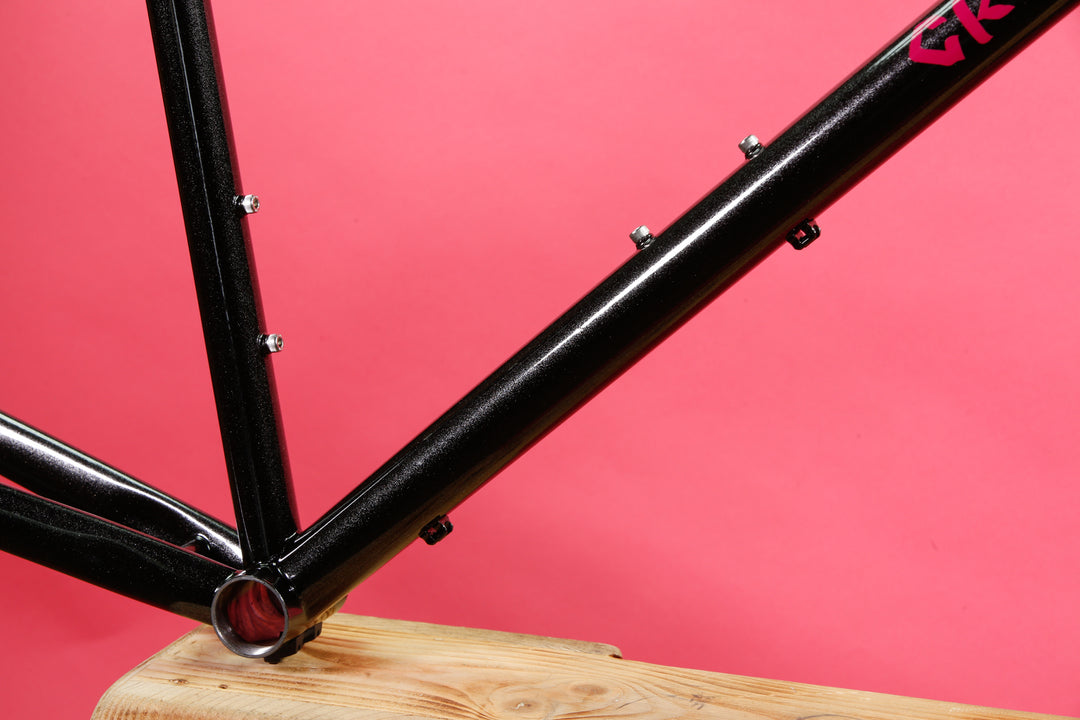

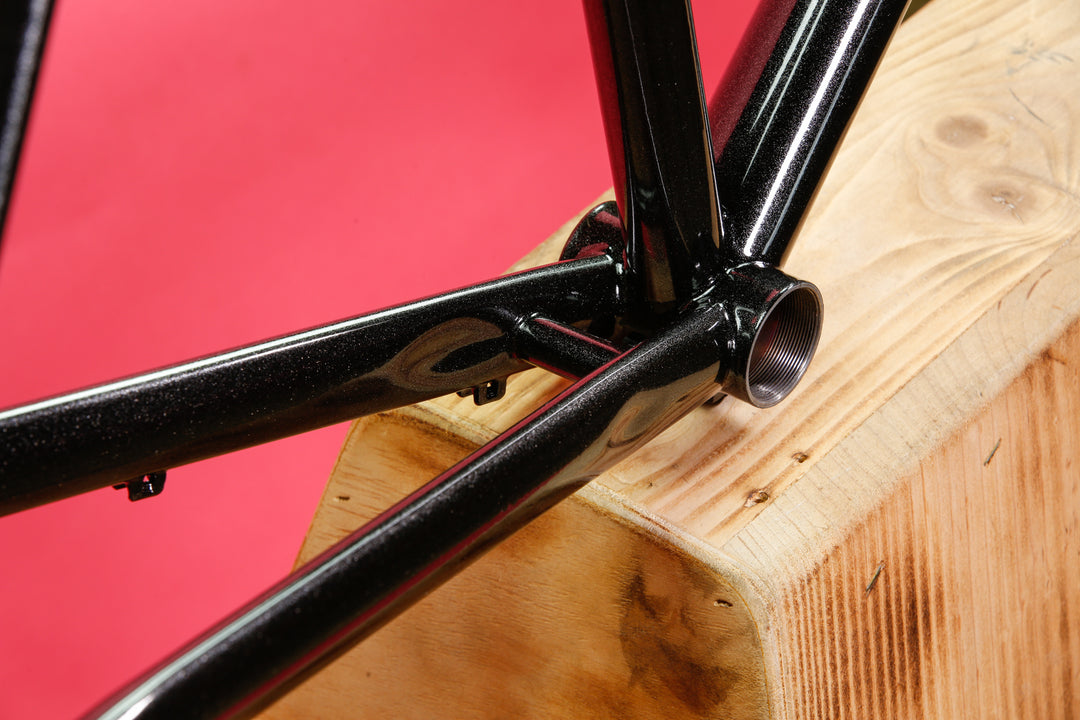

Bottom Bracket- 68mm English (BSA) Threaded

Steerer Tube Length- 400mm

Fork Spacing- 12x100mm

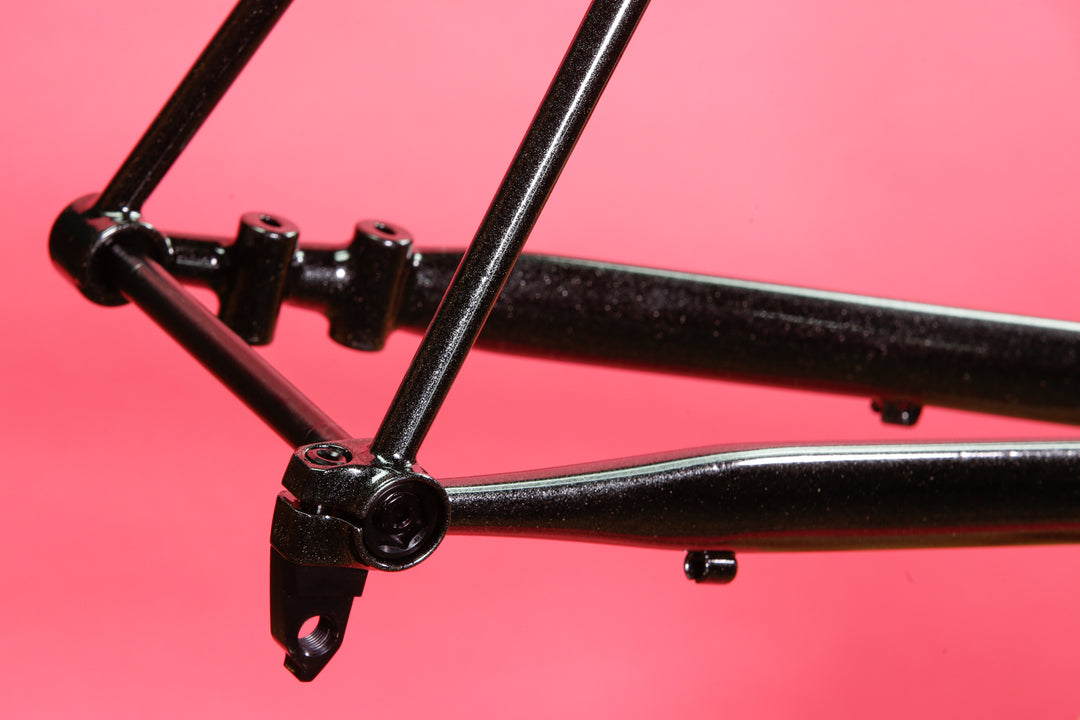

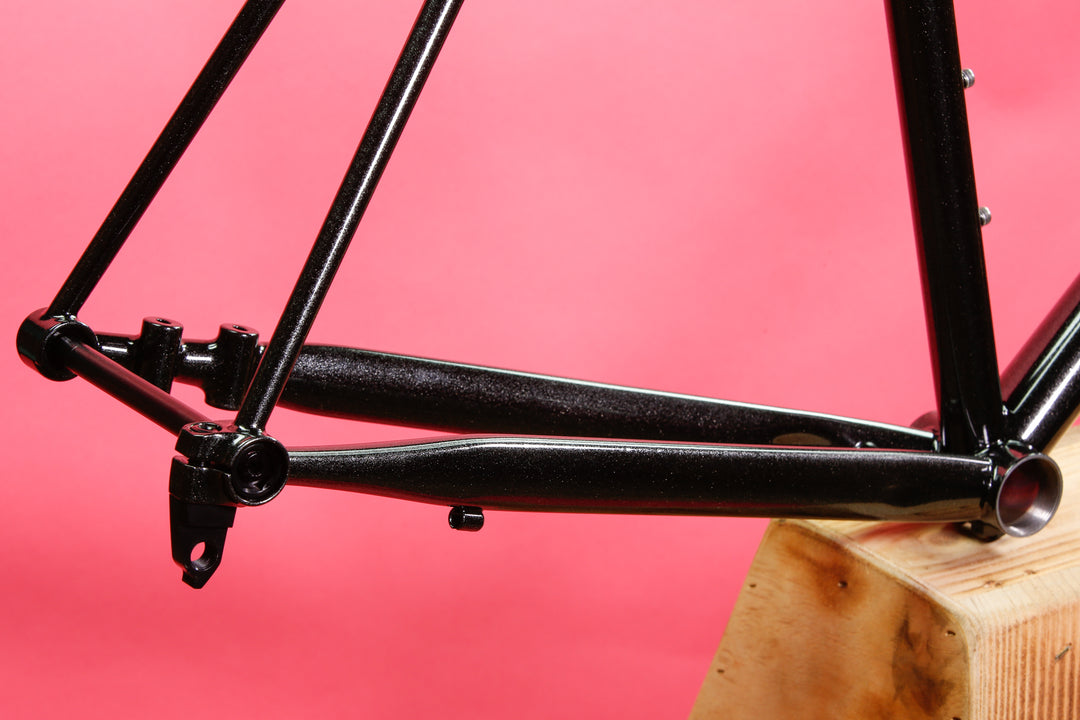

Rear End Spacing- 12x142mm

Front Axle Thread Pitch & Length- 1.5x127mm

Rear Axle Thread Pitch & Length- 1x162mm PMW Syntace Skewer

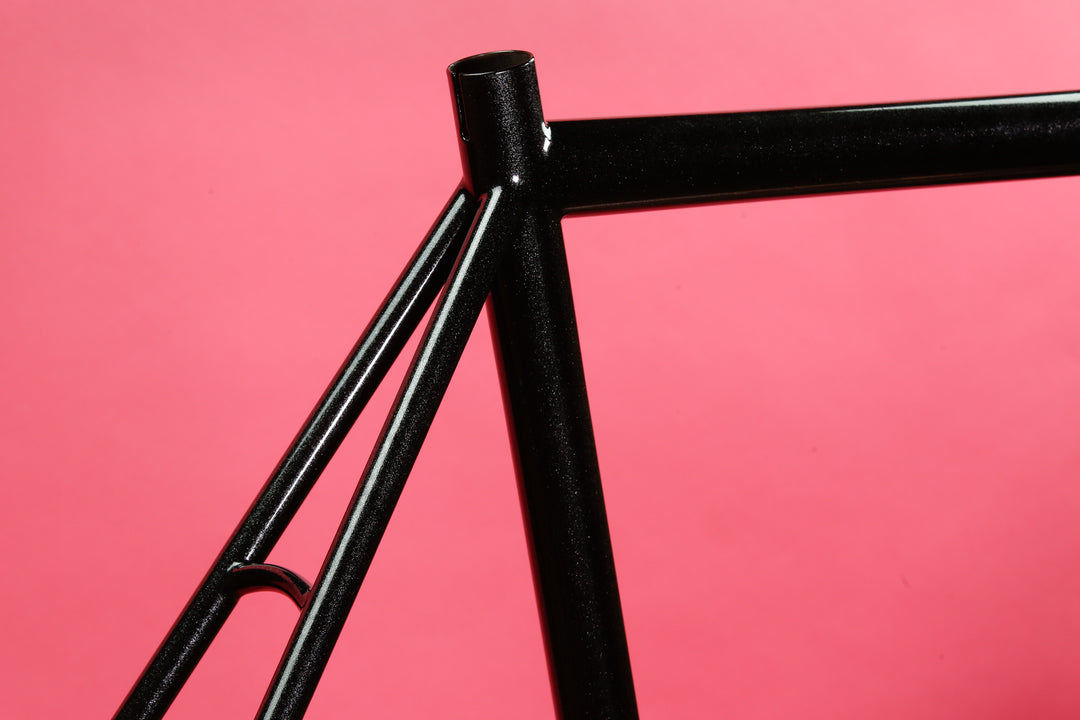

Seat Post Diameter- 27.2mm

Seat Post Clamp Diameter- 30mm

Fork Axle to crown - 382mm

Weight- Frame (Large)- 1.89kg or 4lbs 5oz | Fork (Uncut Steerer)- 450g or 15.8oz
