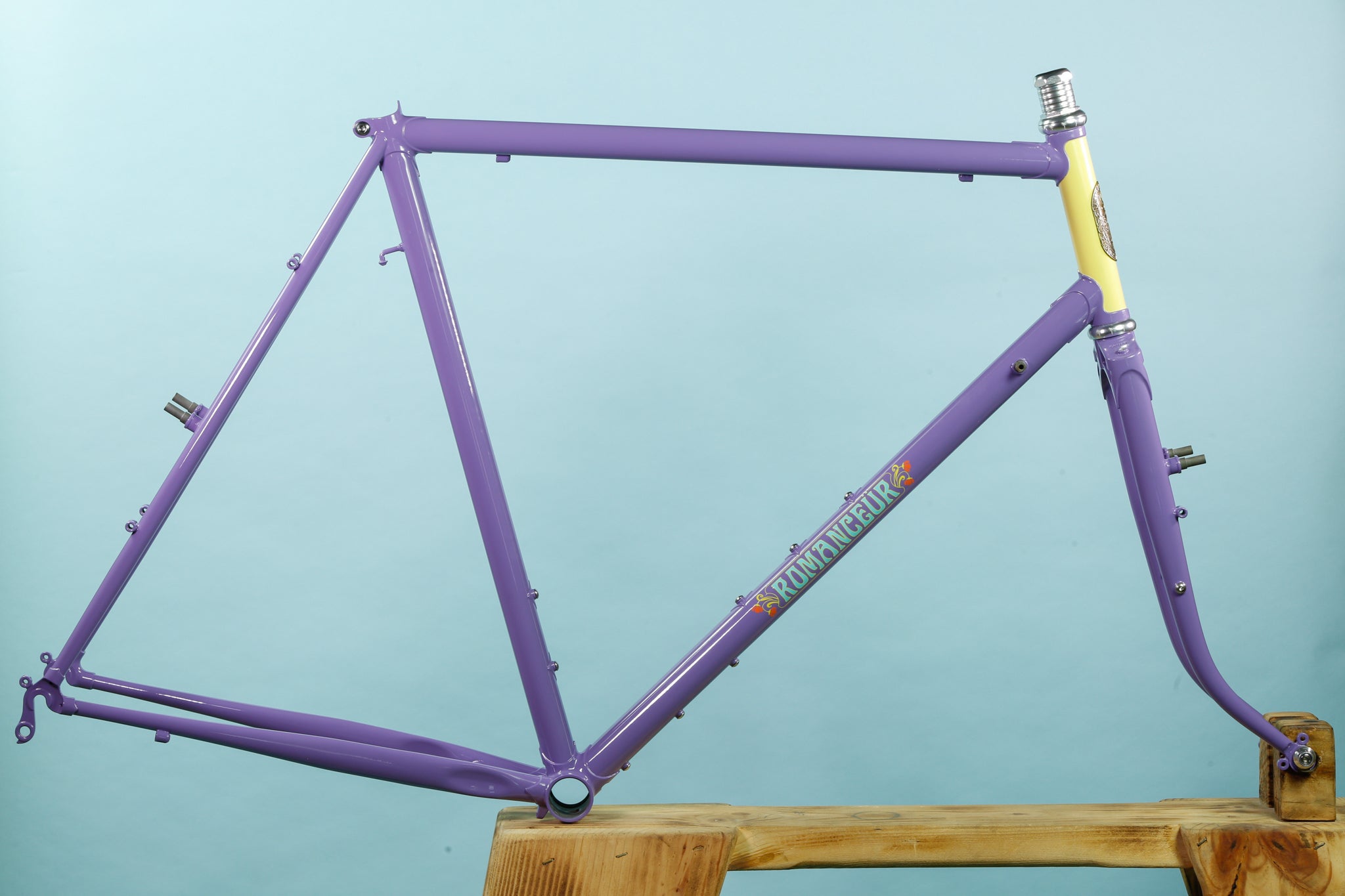

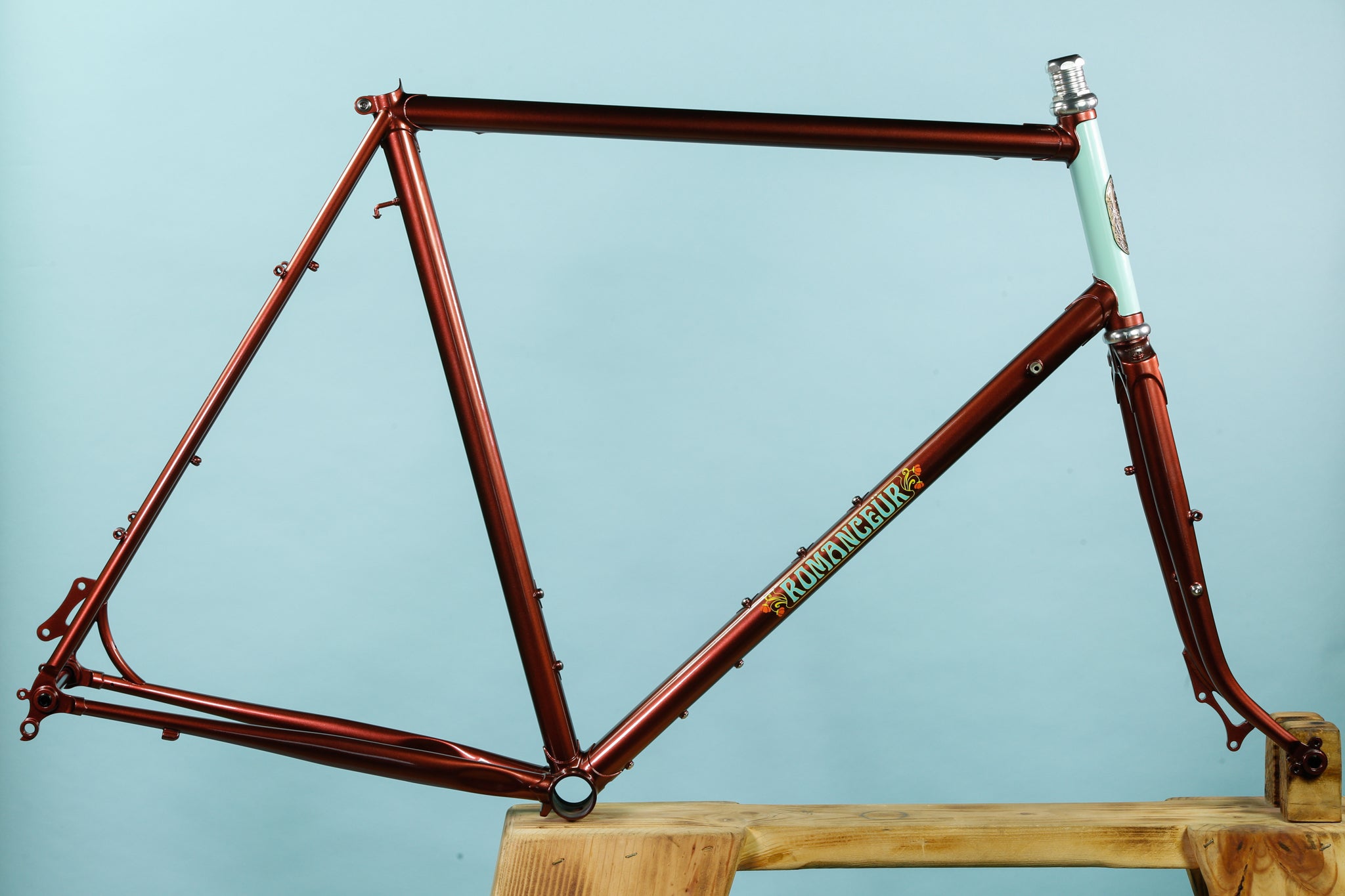

Ahhh...The Romanceür. This is Ron's (Ultraromance) brain child. The 1" threaded, lugged, disc brake bike, now offered in a rim brake version as well! The Romanceur is designed to be able to take you out for a couple day jaunt and bring everything you may need for a whimsical time, in style.
Build Notes:
The Disc Romanceür can fit 26x2.3" or 650bx48 tires with fenders. Without fenders you can go for 26x2.4" or 27.5x2.2".

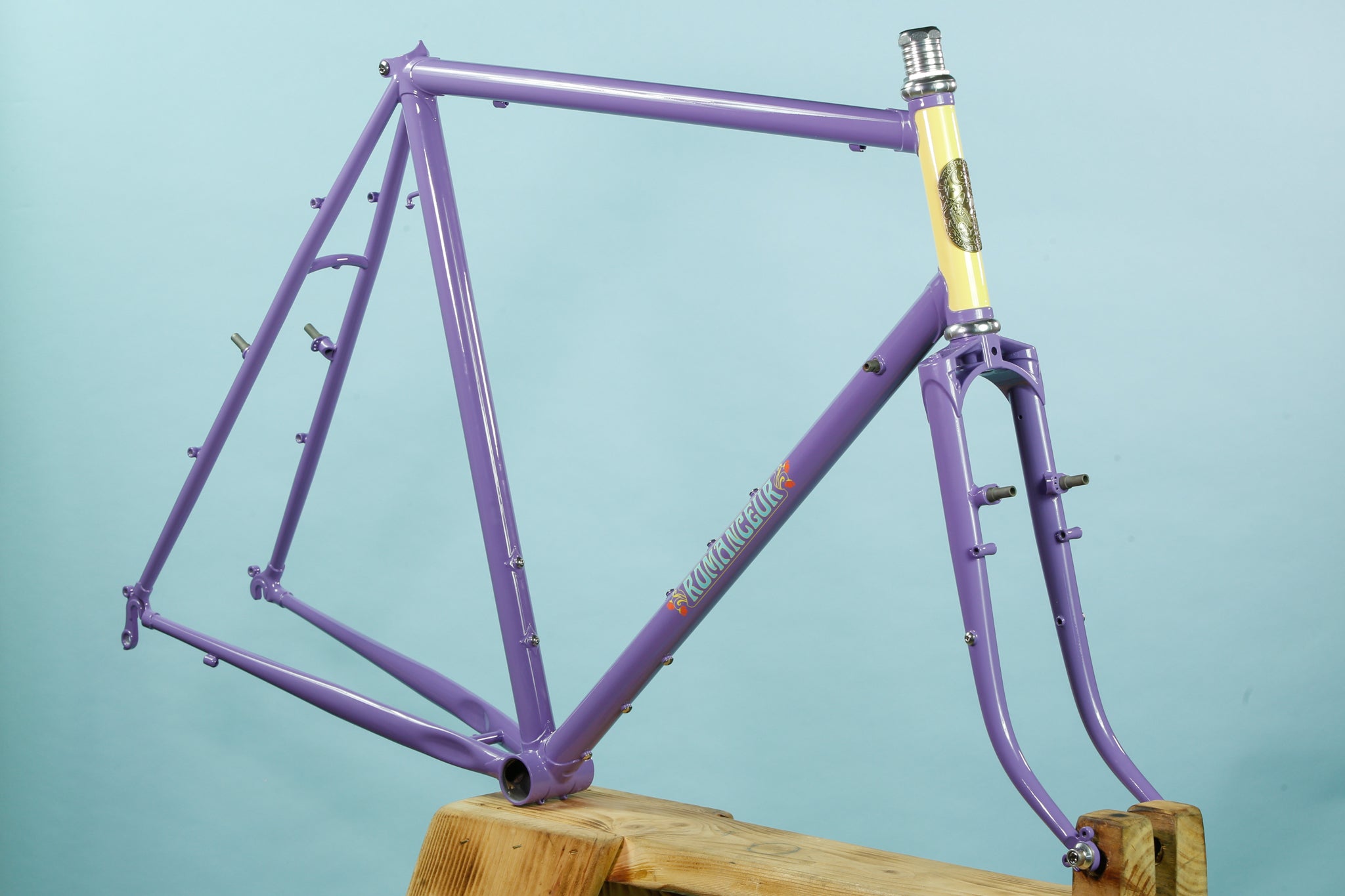

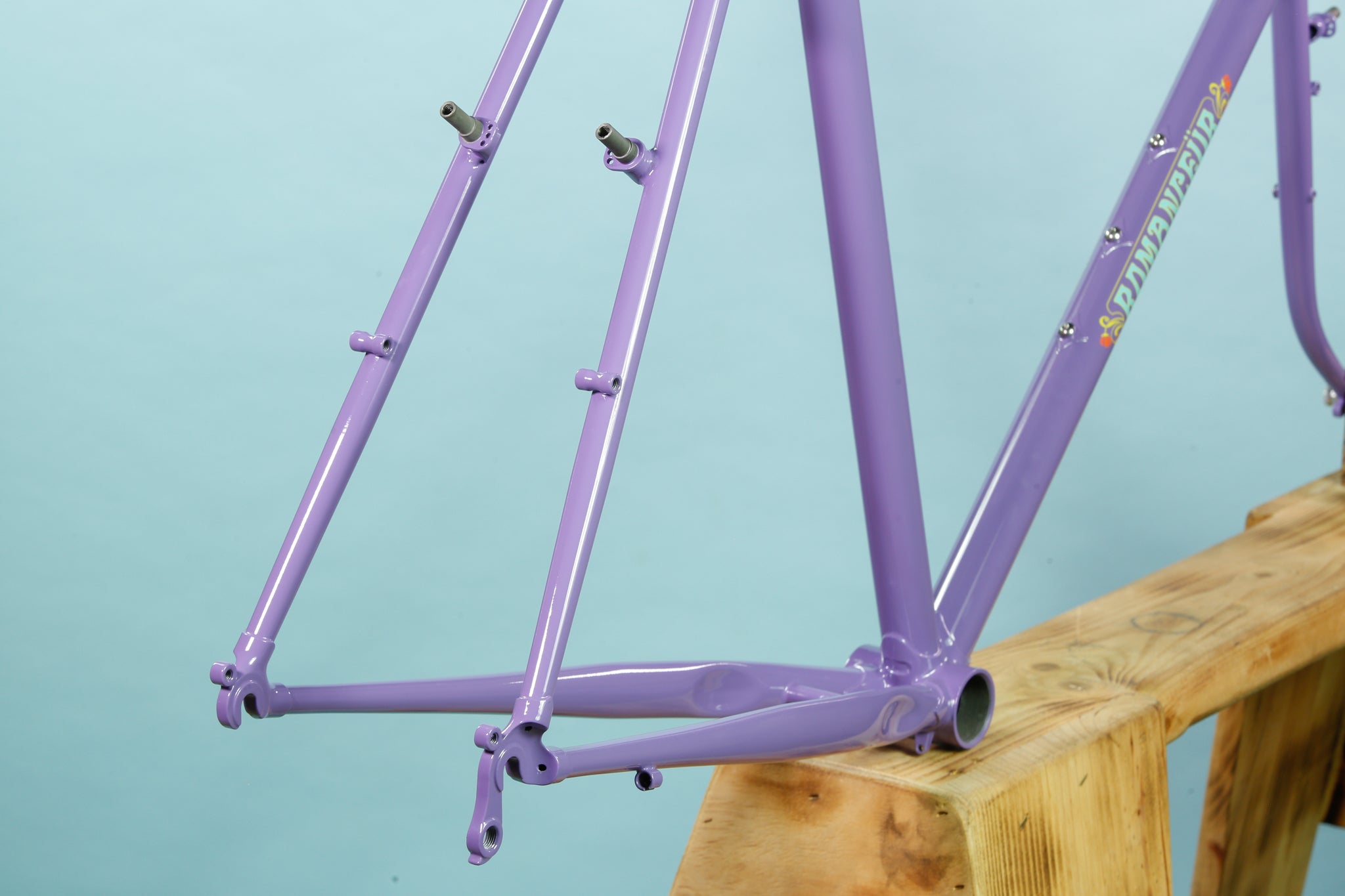

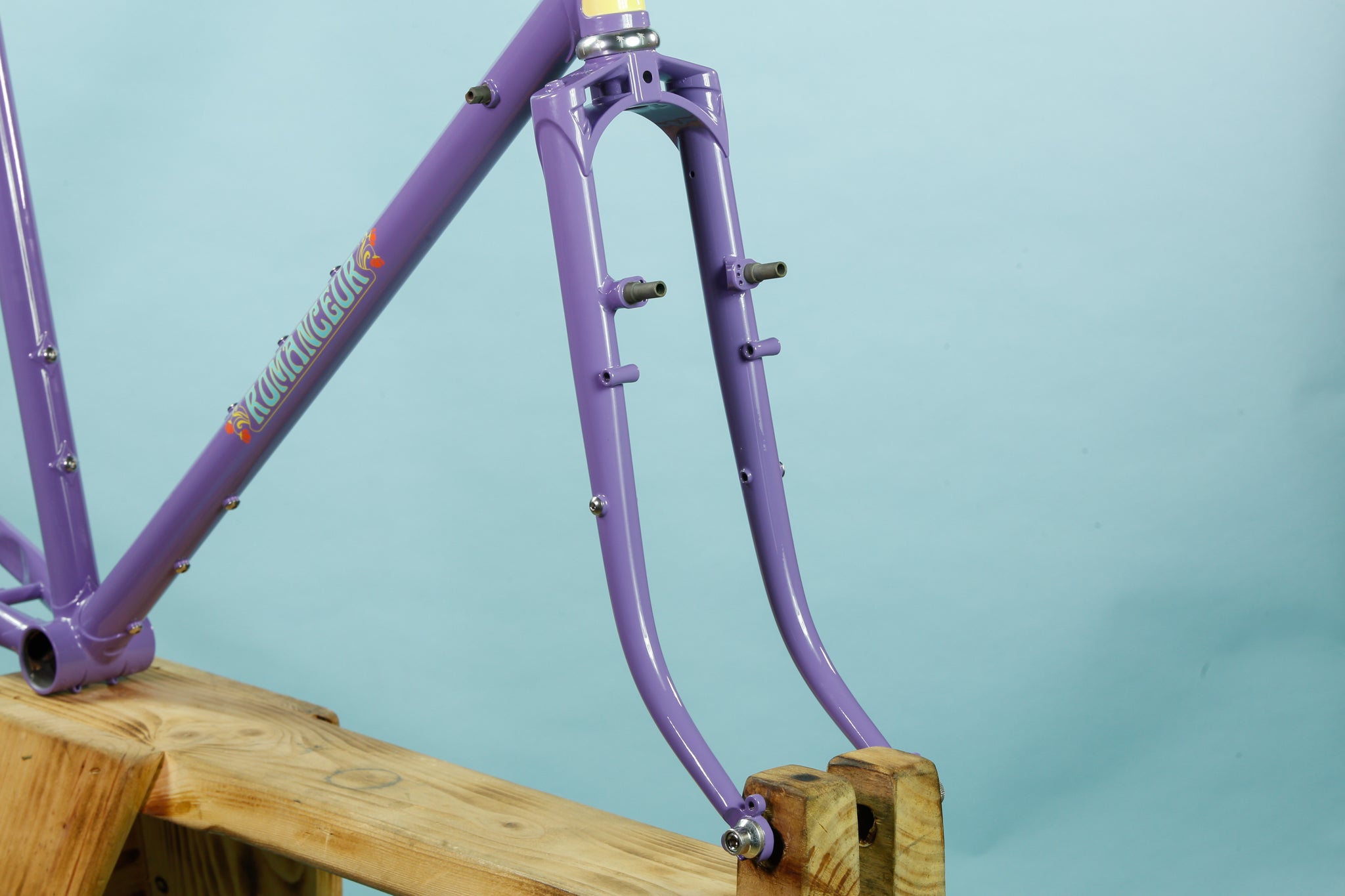

The Canti Romanceür is 650b/ 27.5" ONLY due to brake mount placement, but retains the 650bx48 with fenders and 27.5x2.2" without fenders.

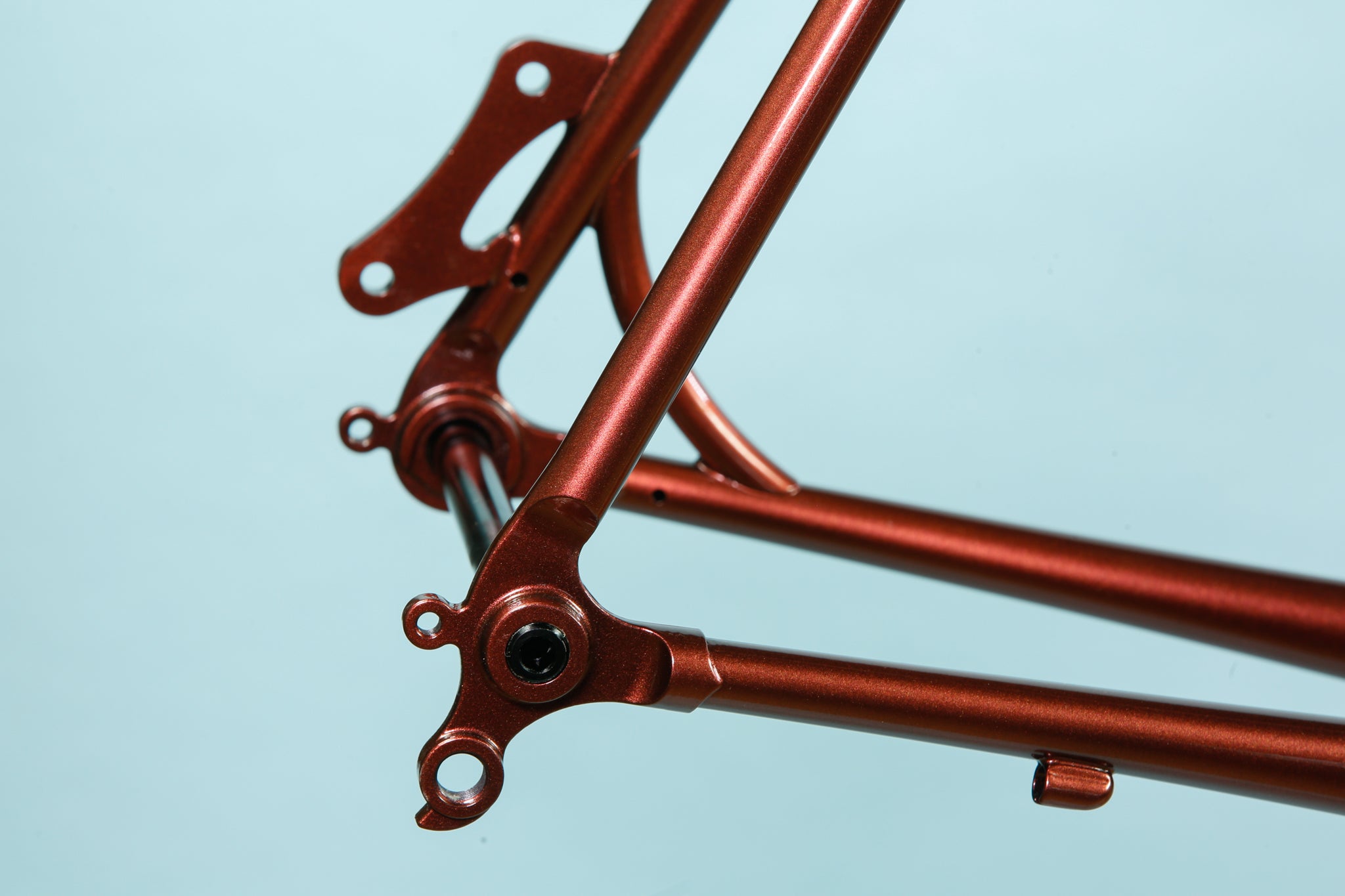

The Disc version's rear brake has internal cable routing through the top tube, while the Canti version has two cable stops.
Front and rear thru axles are included with the Disc model.

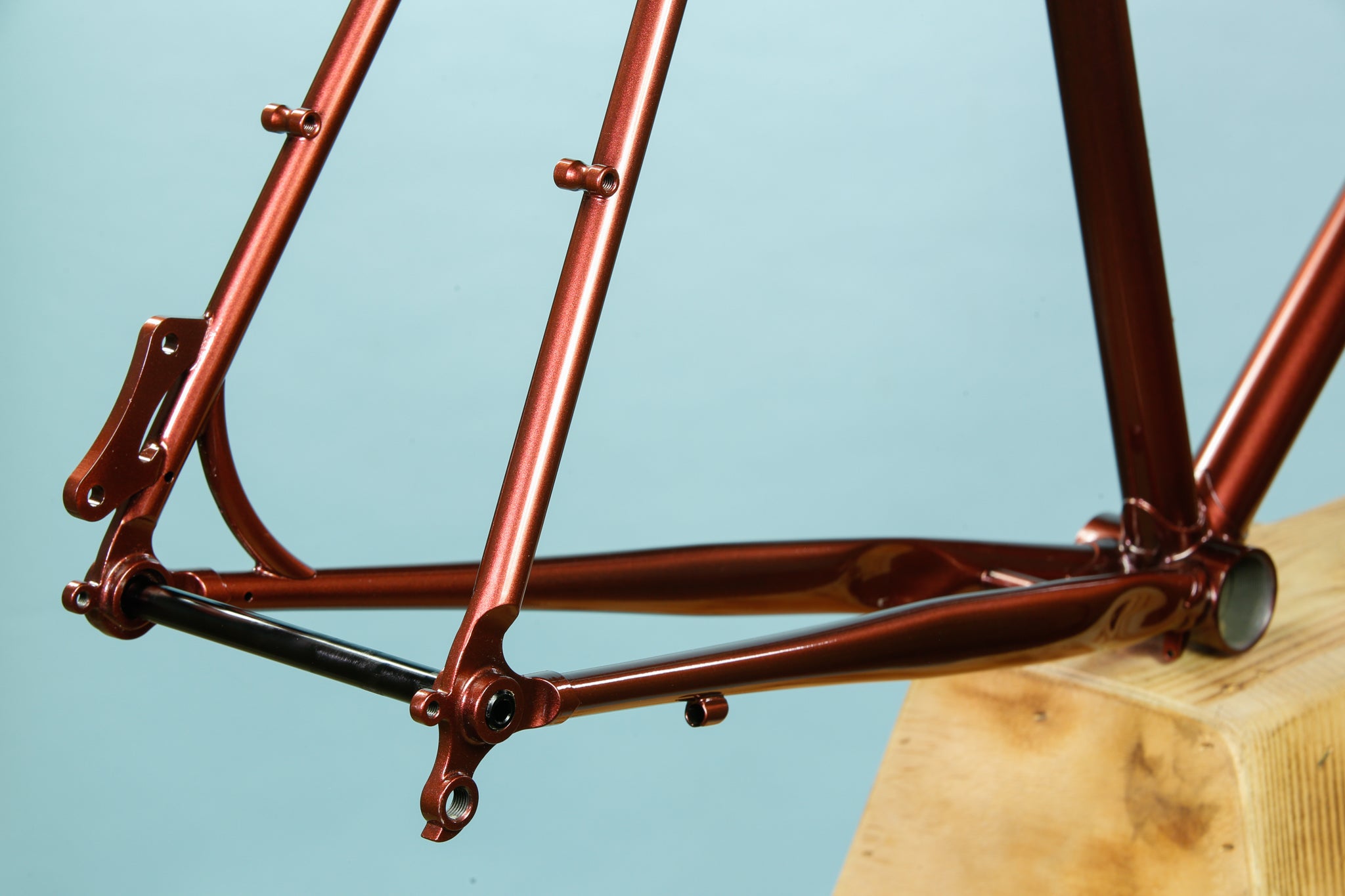

The Disc version is I.S. mount. Best set up with up to a 160mm rotor front and rear

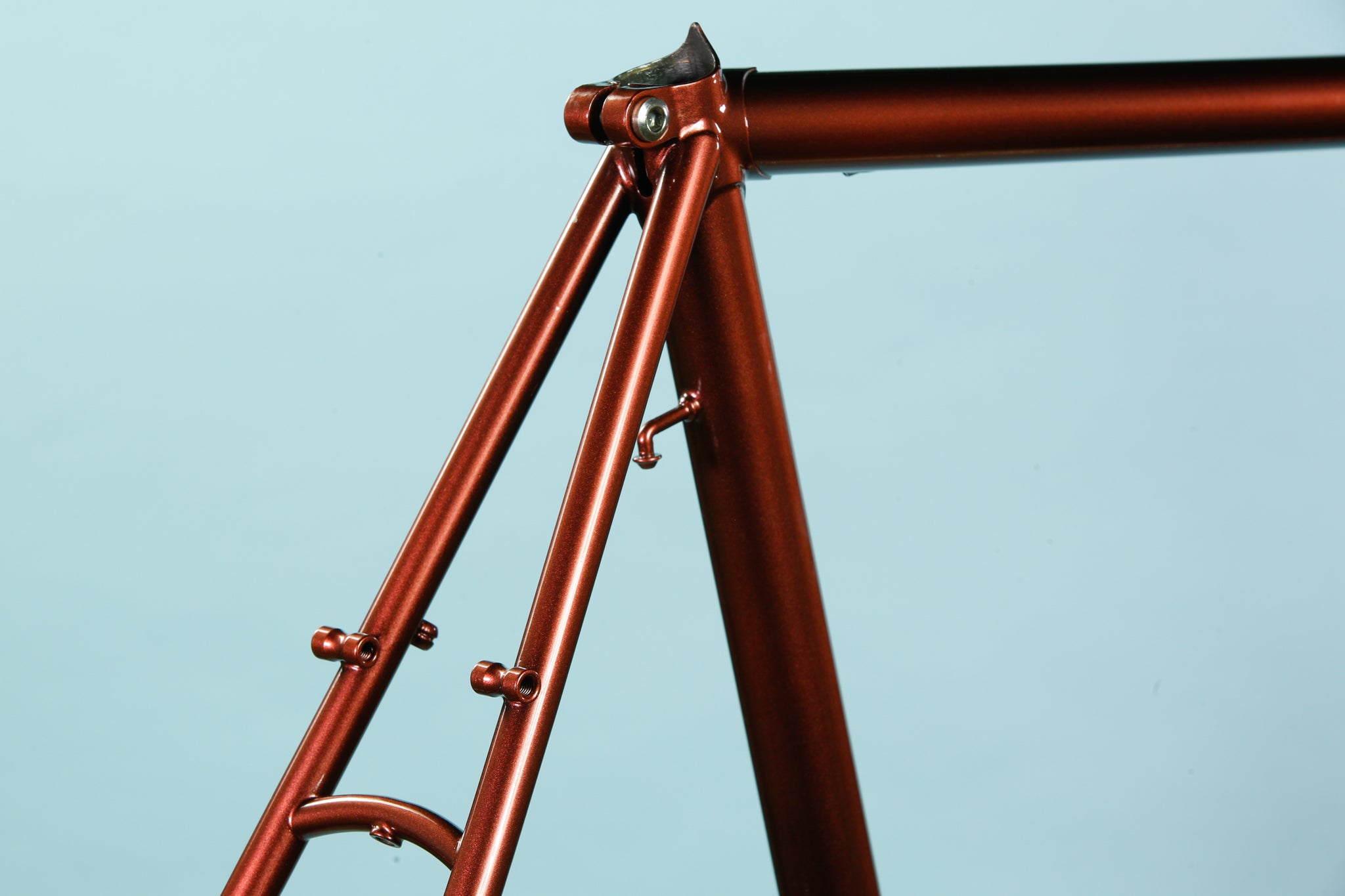

Want to run a Zefal Pump on your pump peg behind the seat tube? Here's what size to get for each frame size:
50cm- HPX 1
52cm- HPX 1 or 2
55cm- HPX 2
58cm- HPX 2 or 3 (2 is more ideal)
62cm- HPX 3
HEADSET NOT INCLUDED
Details:
Handmade in Taiwan using Reynolds 853 tubing

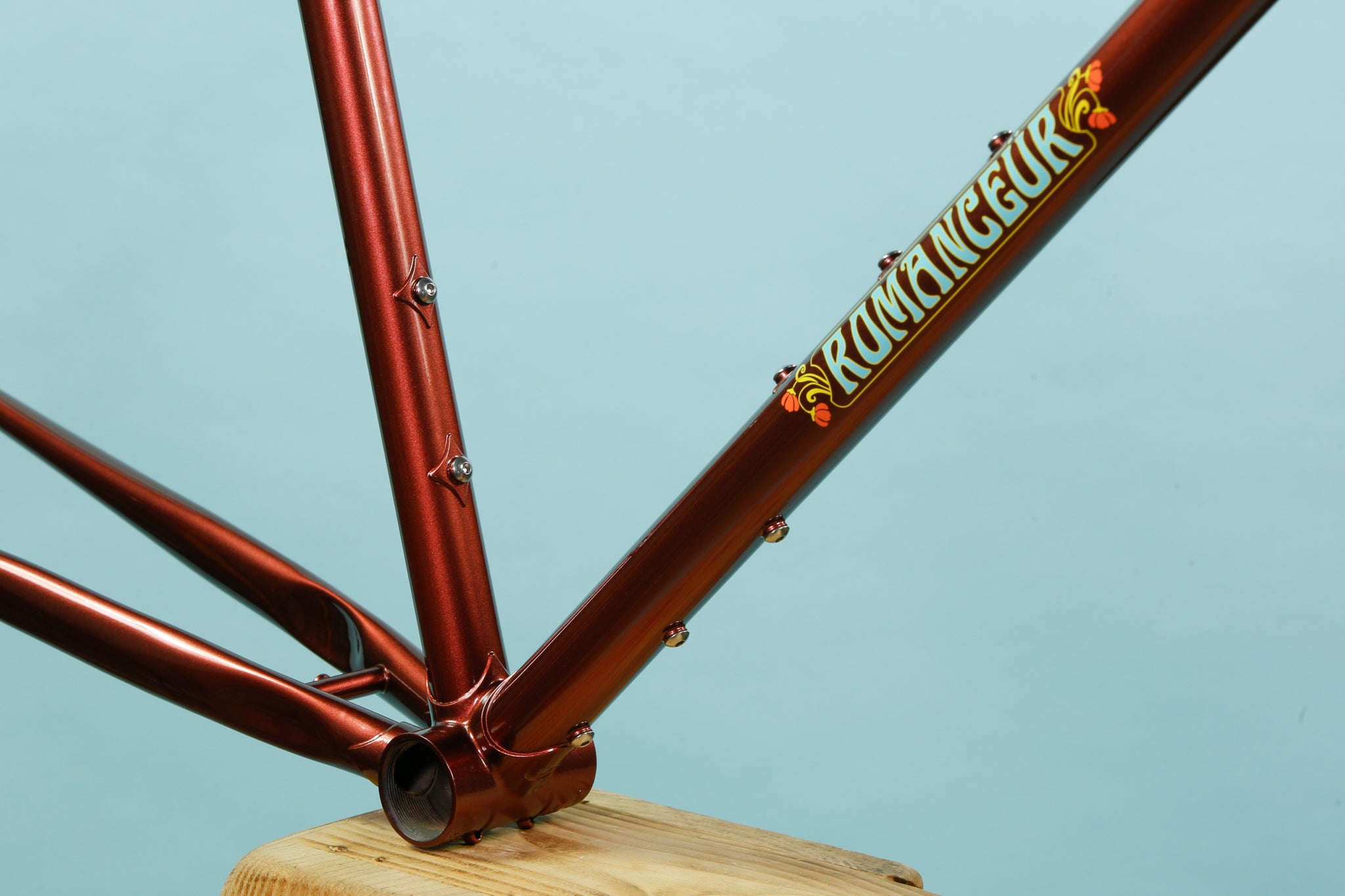

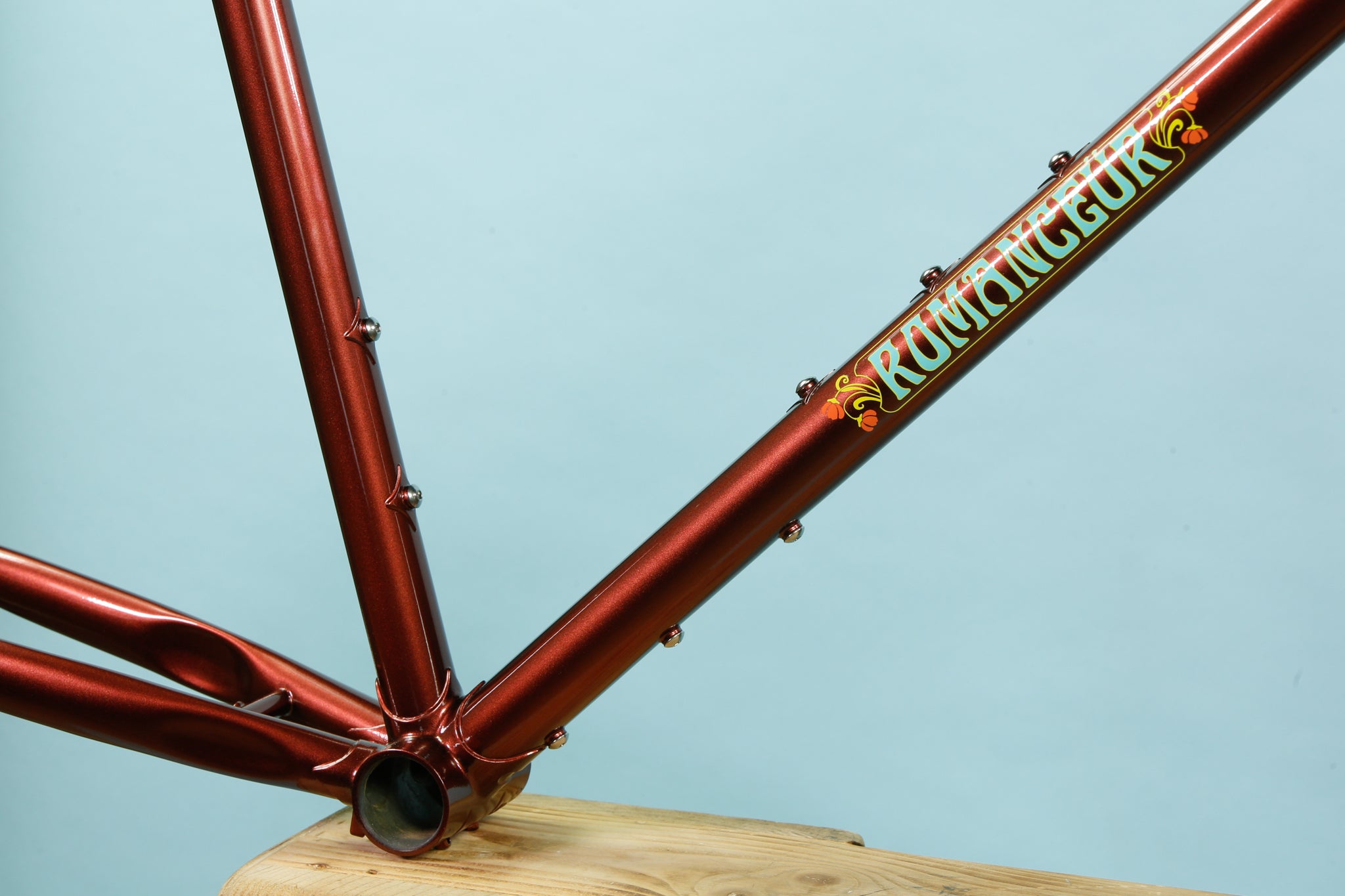

Fillet Brazed Ornate Lug Construction

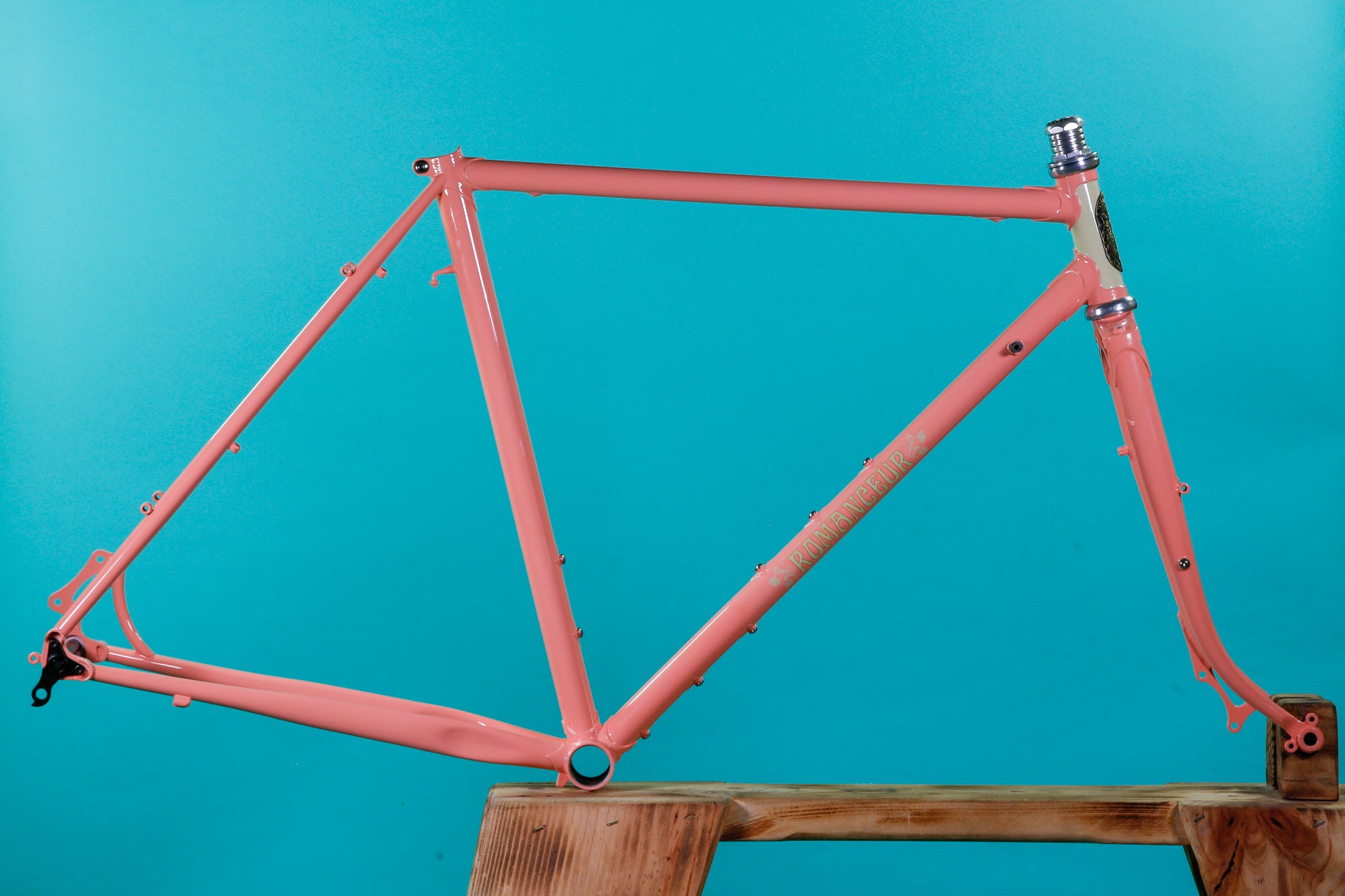

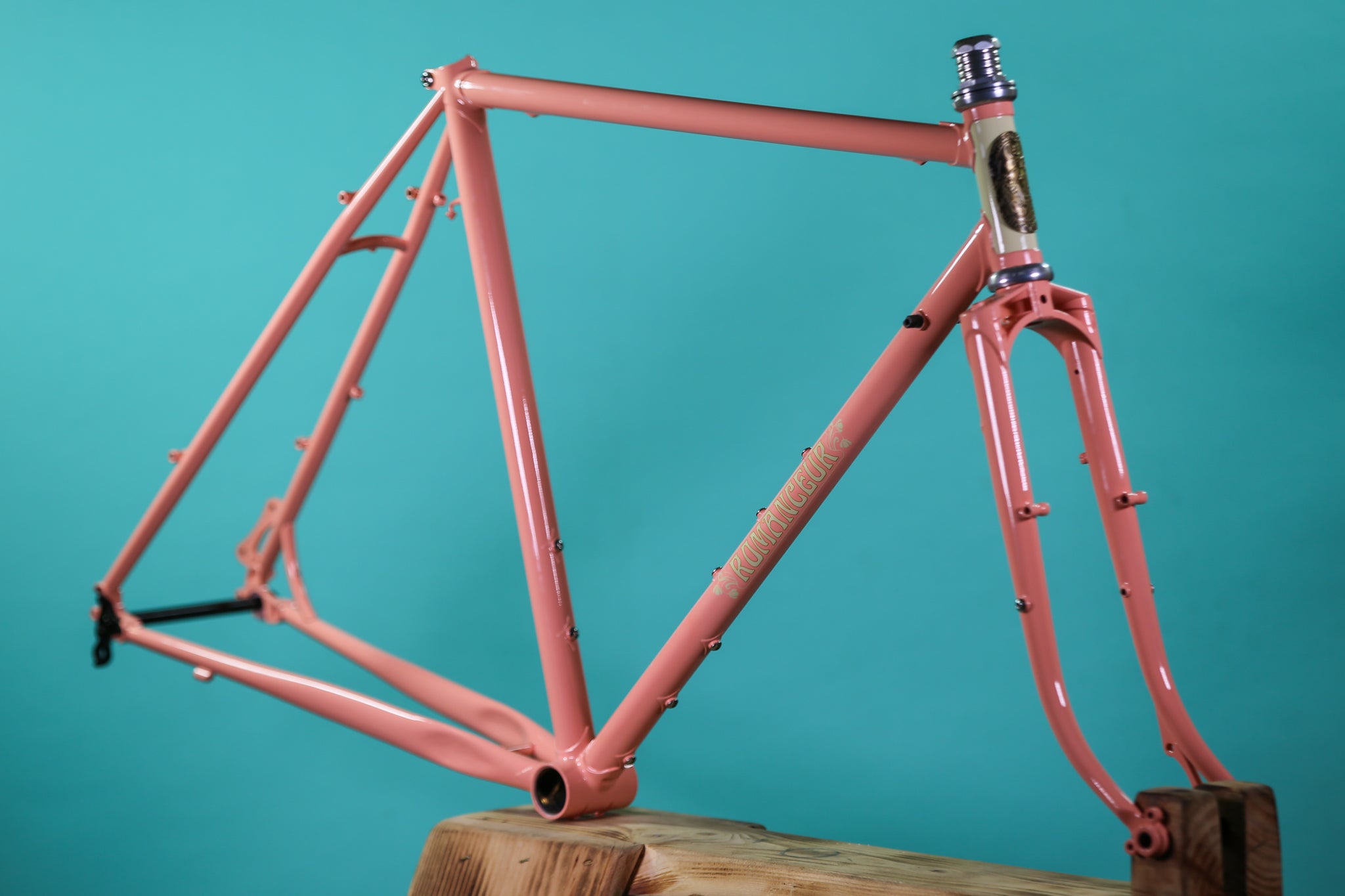

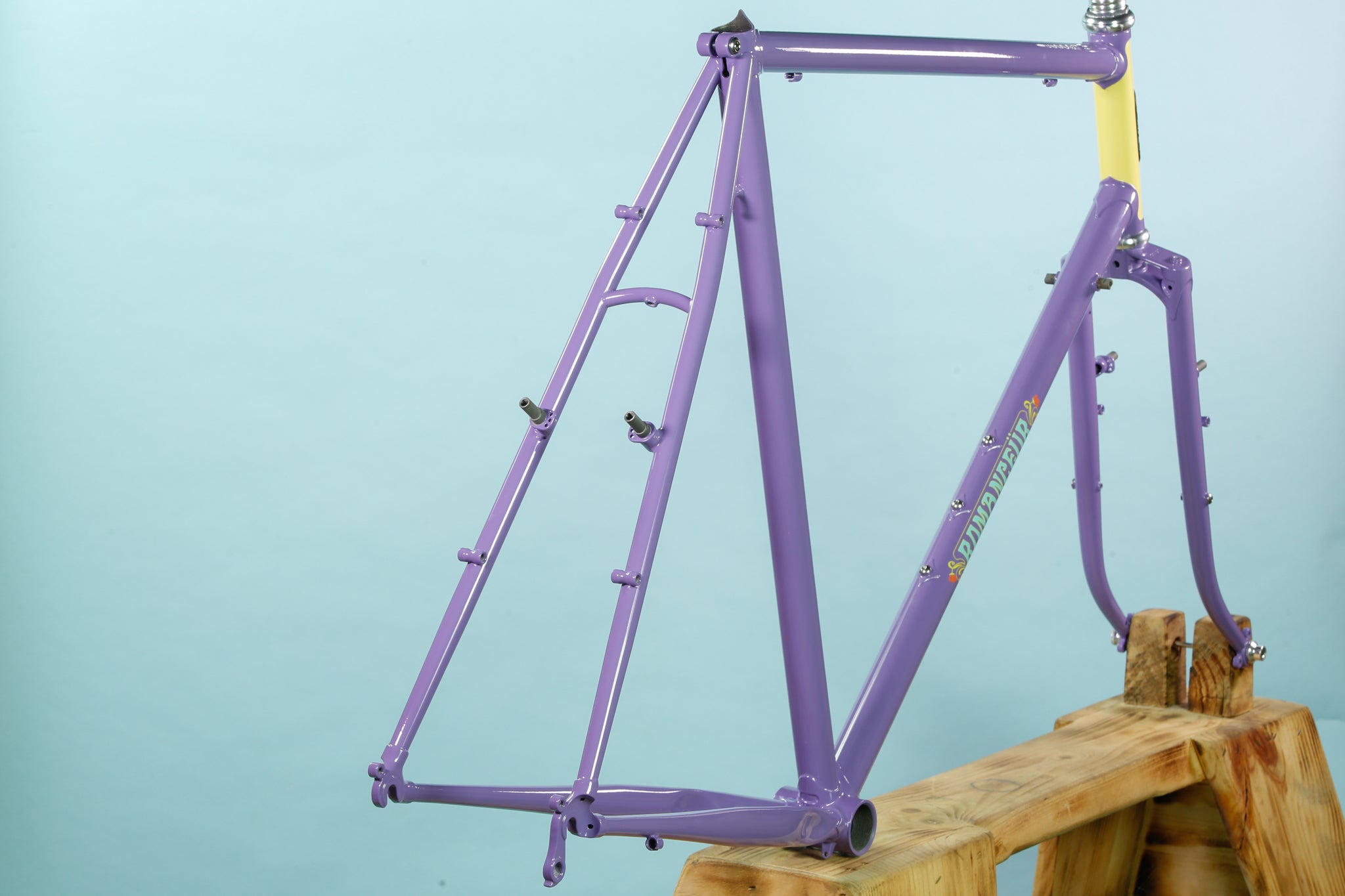

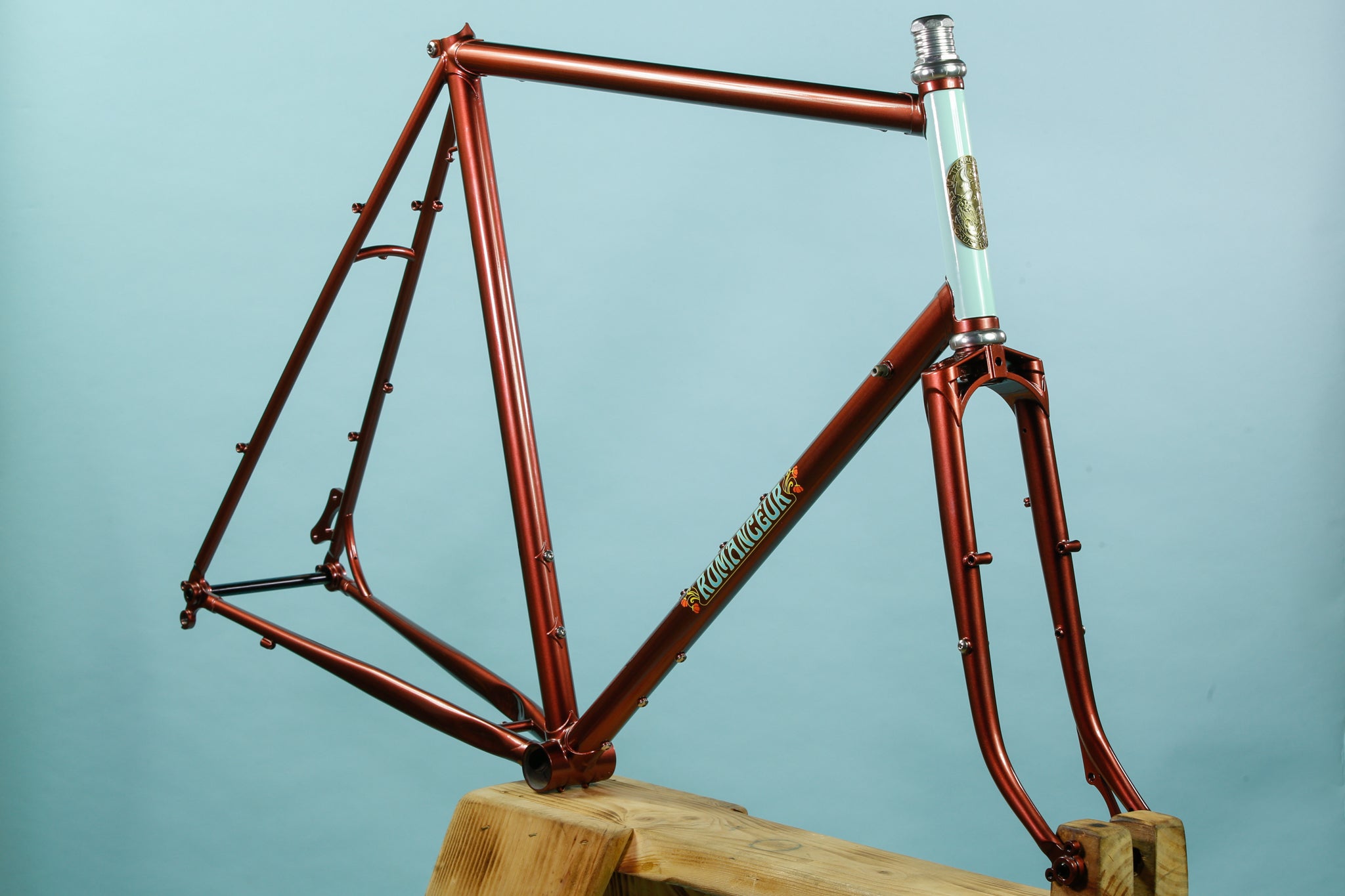

Color- Disc: Rootbeer or Atlantic Salmon (Pink) | Canti: Ultraviolet or Pistachio (Once the (2023) Atlantic Salmon and Pistachio frames are gone, they are gone for good.)
Sizes- Extra Small 50cm | Small 52cm | Medium 55cm | Large 58cm | NEW Extra Large 60cm | Extra Extra Large 62cm (All sizes have a level top tube)

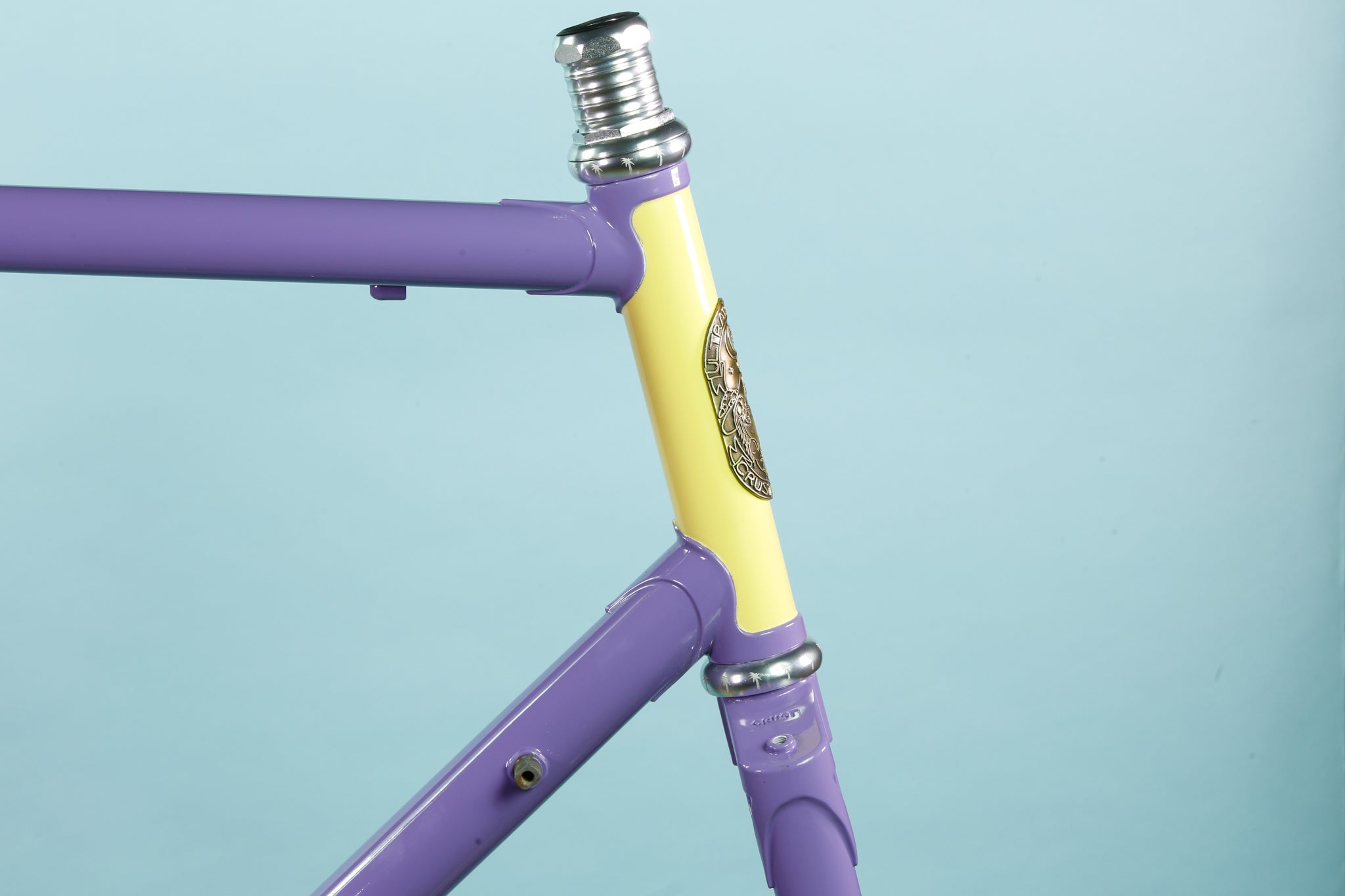

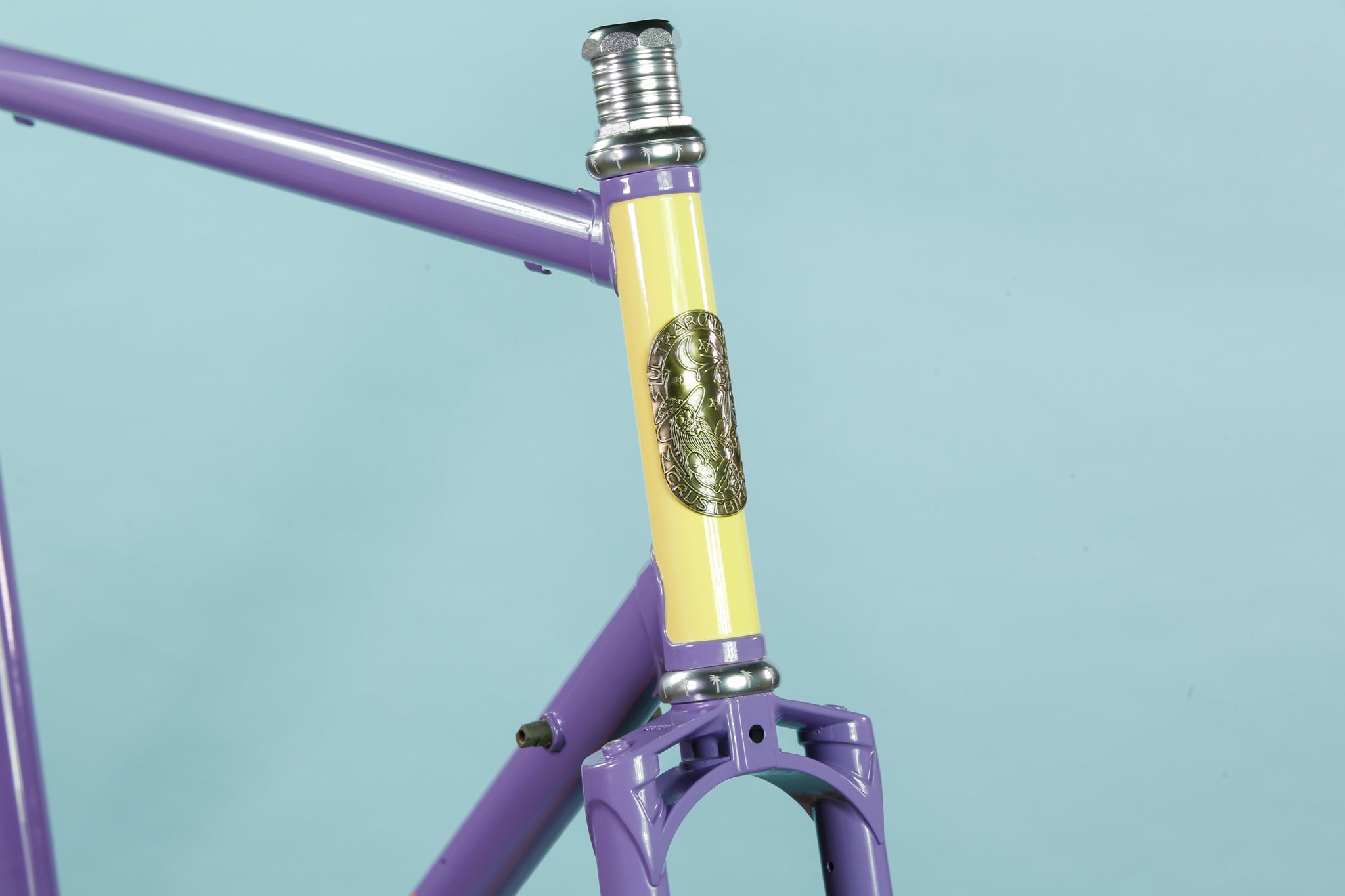

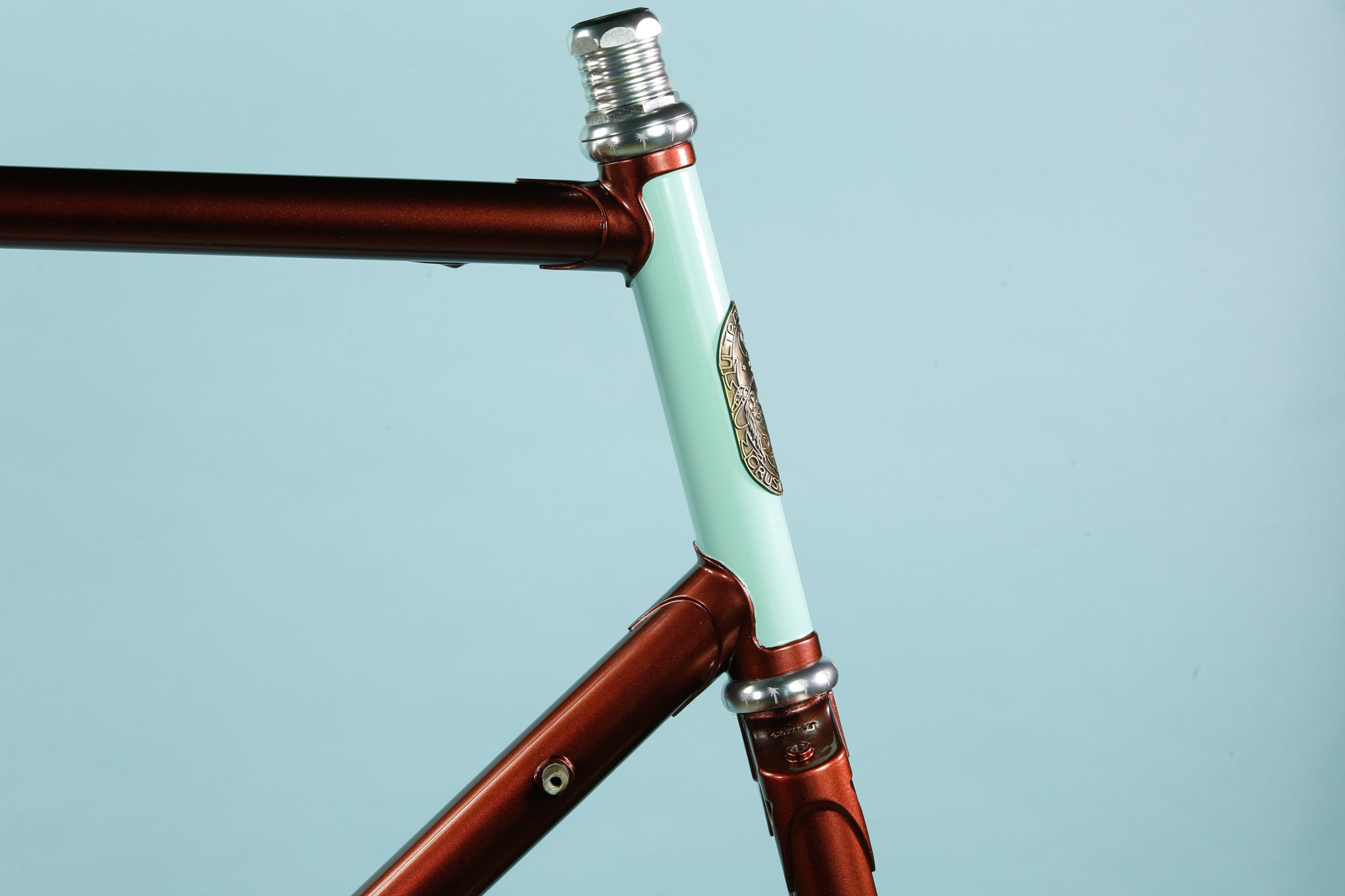

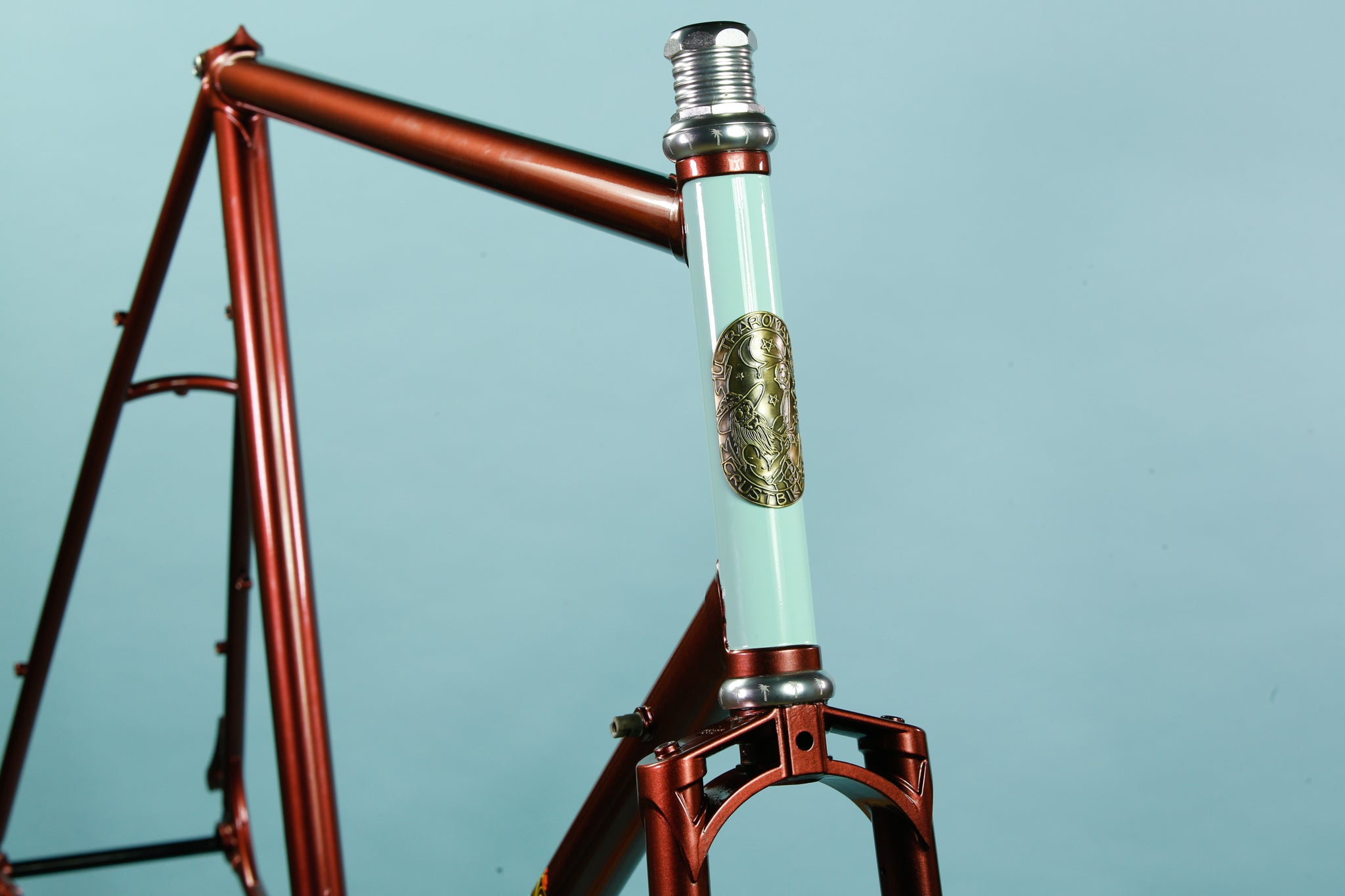

Head Tube Diameter- 1" (Threaded Steerer) 26.4 crown race

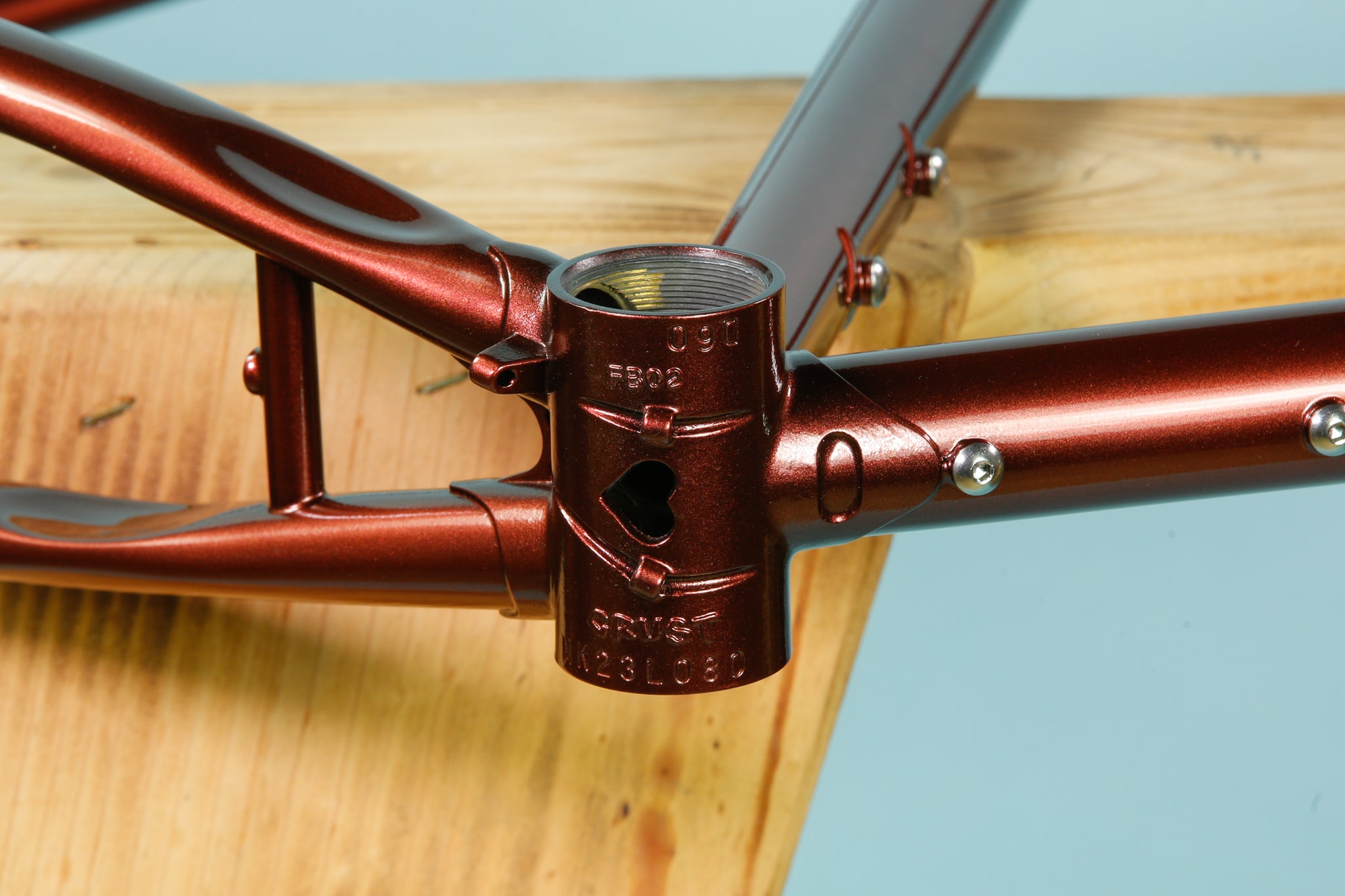

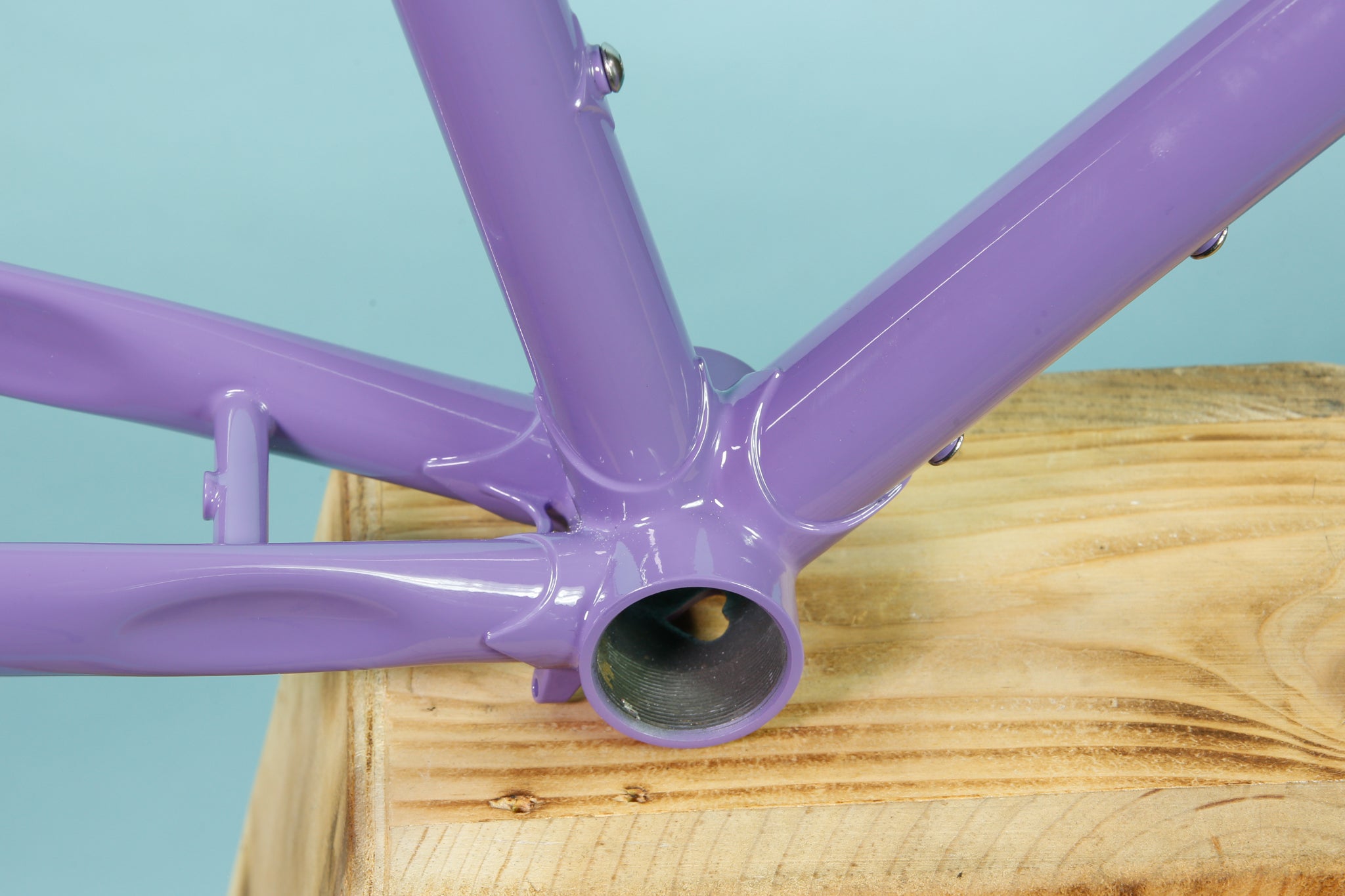

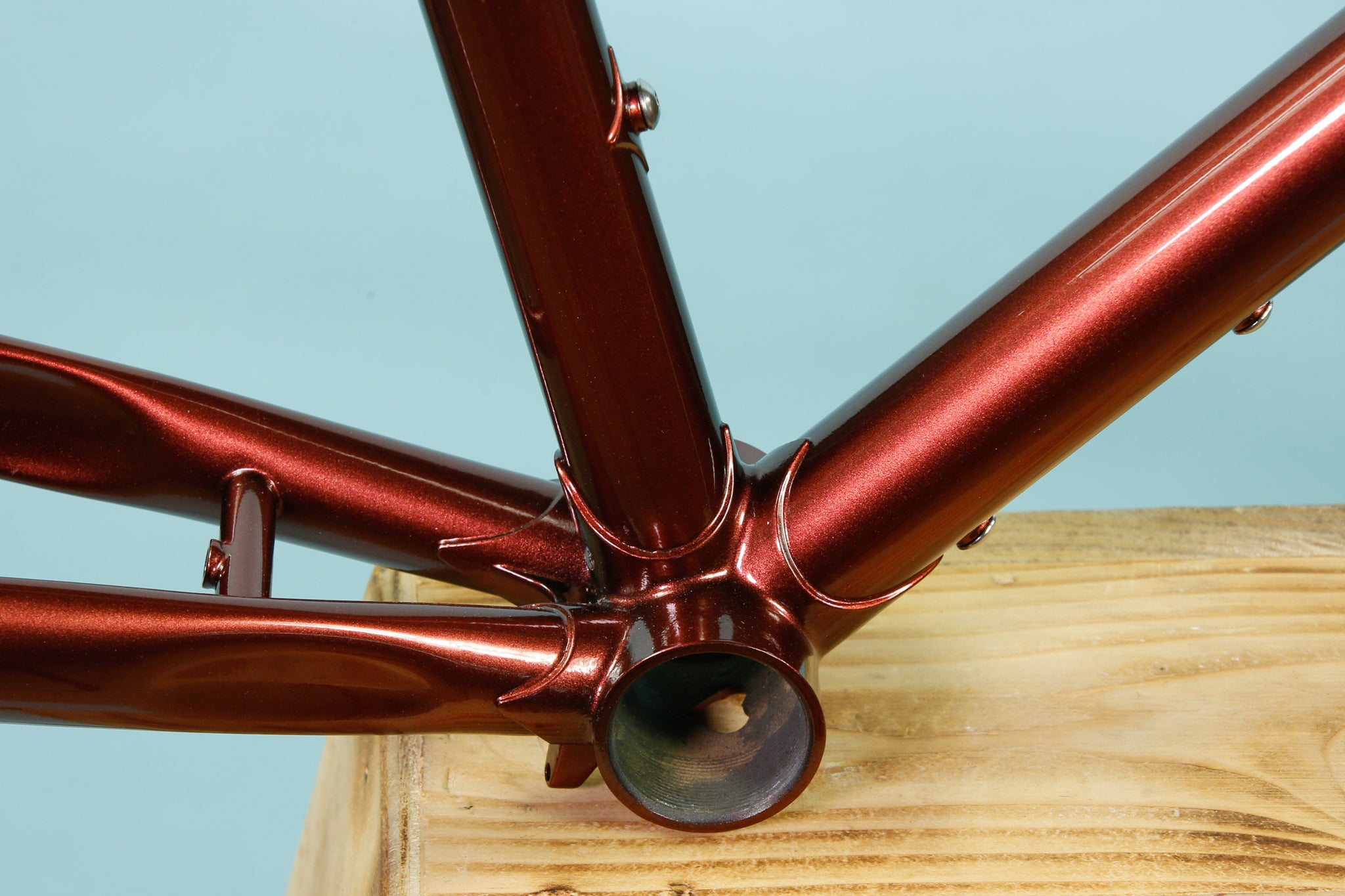

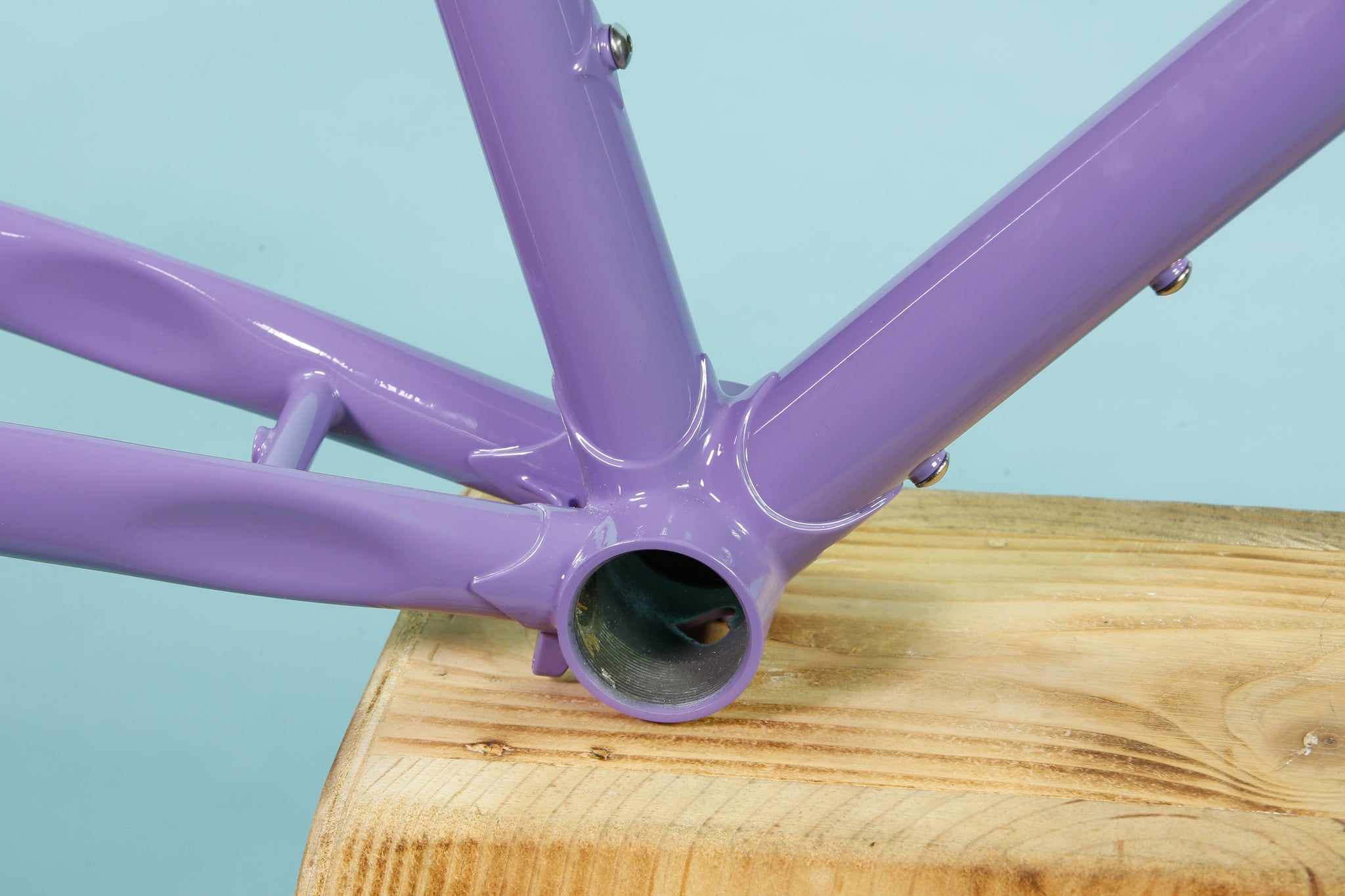

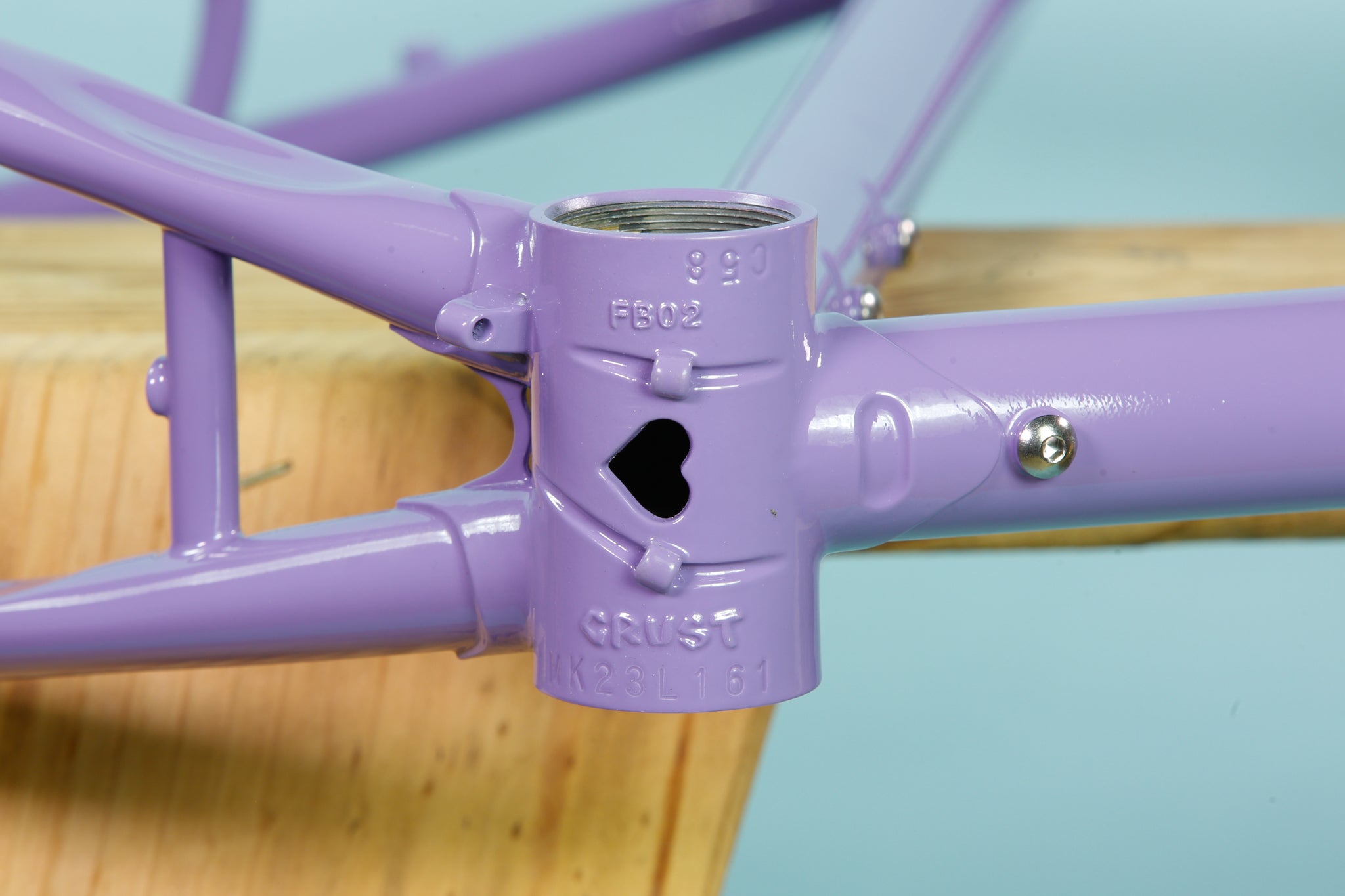

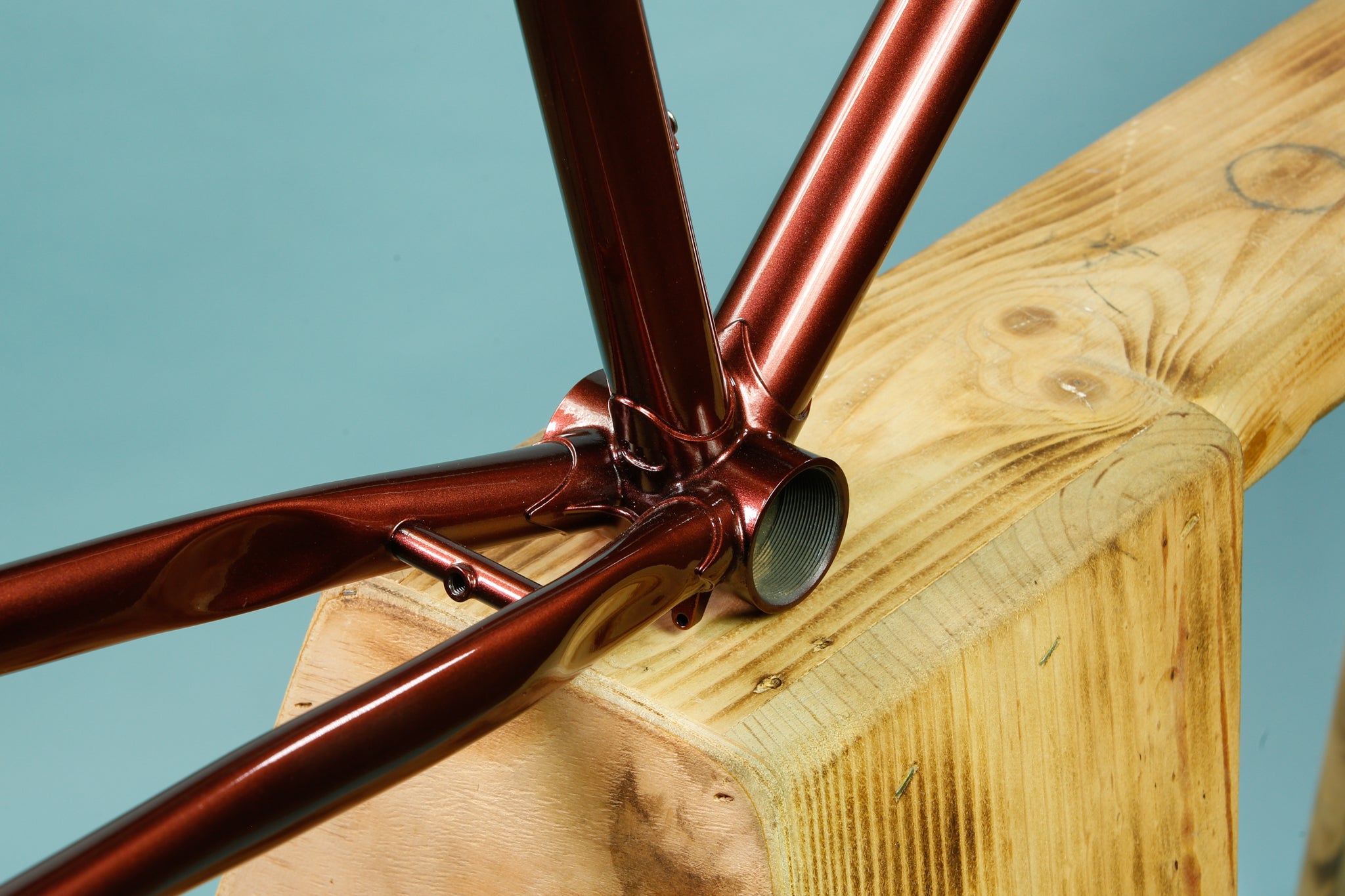

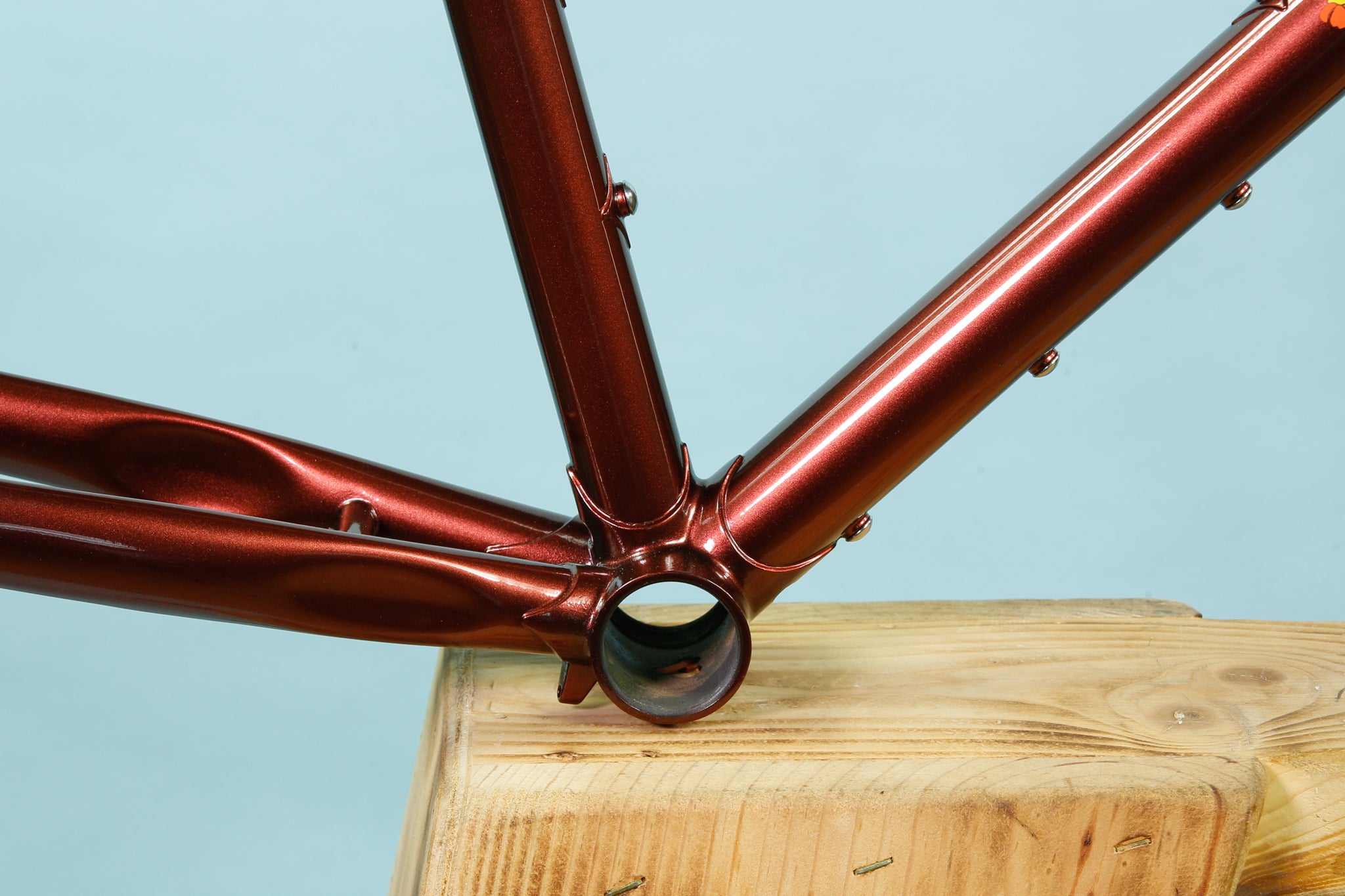

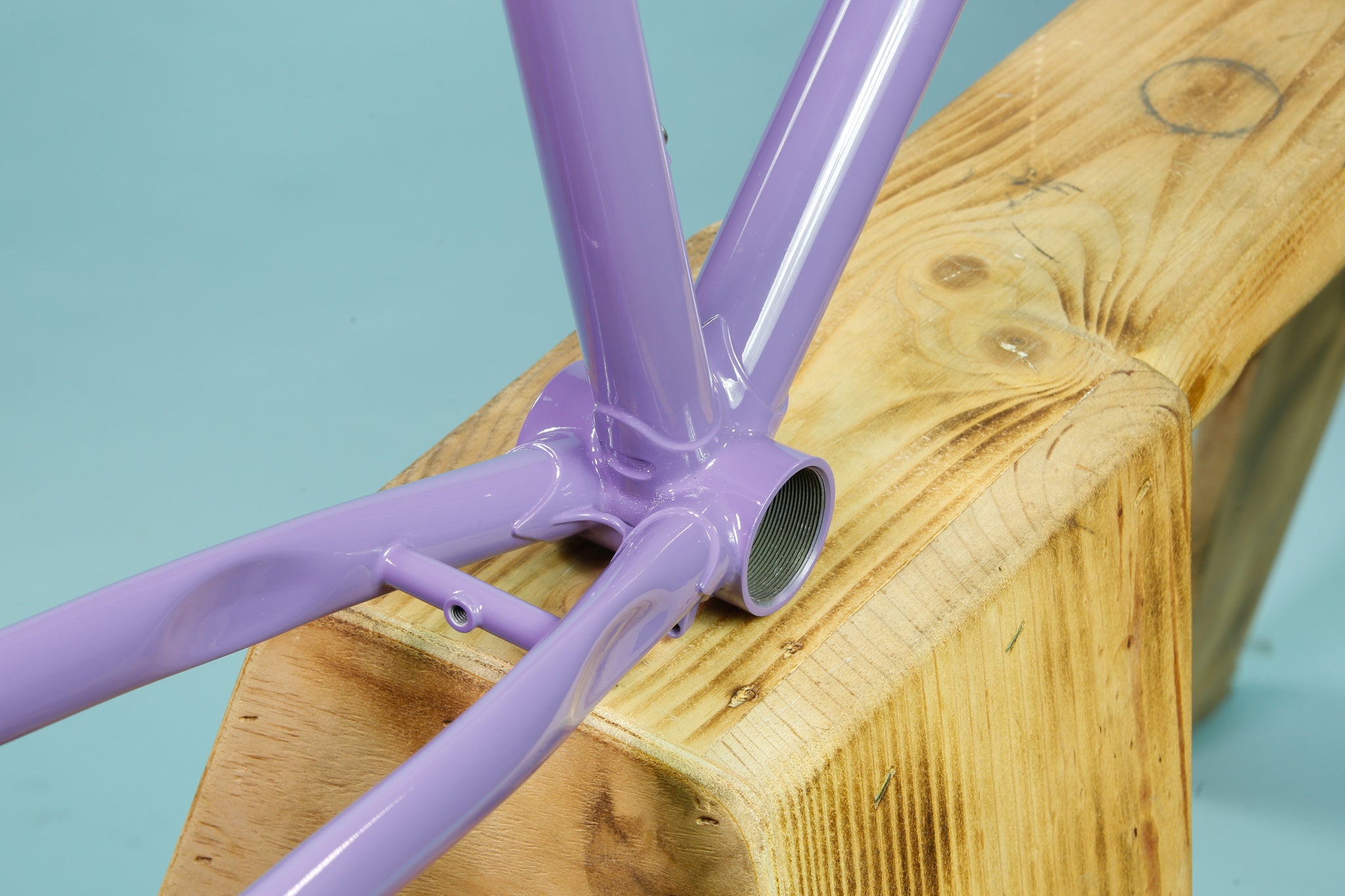

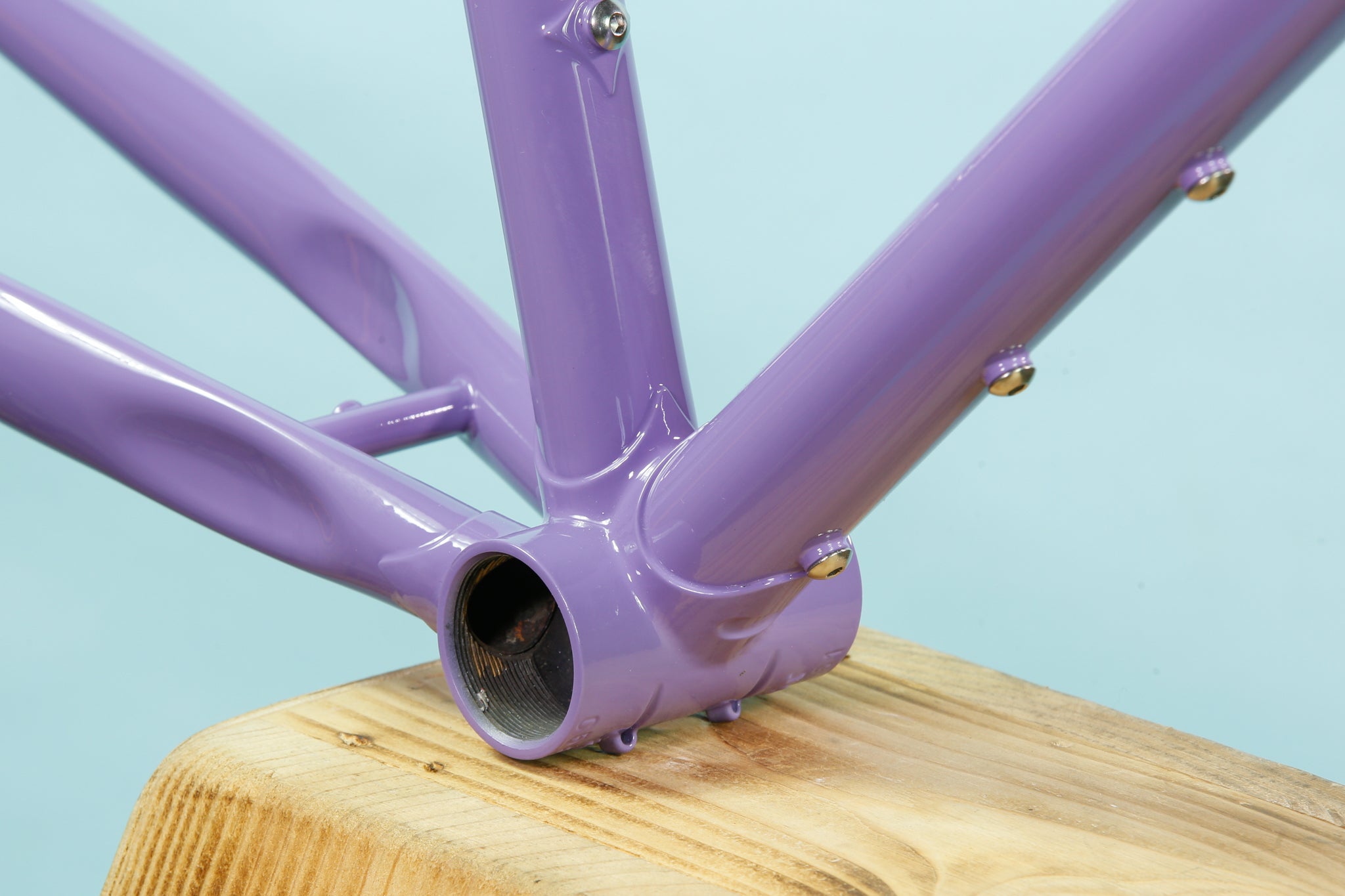

Bottom Bracket- 68mm English (BSA) Threaded
Steerer Tube Length- Size Specific. Each size leaves some room for spacers.

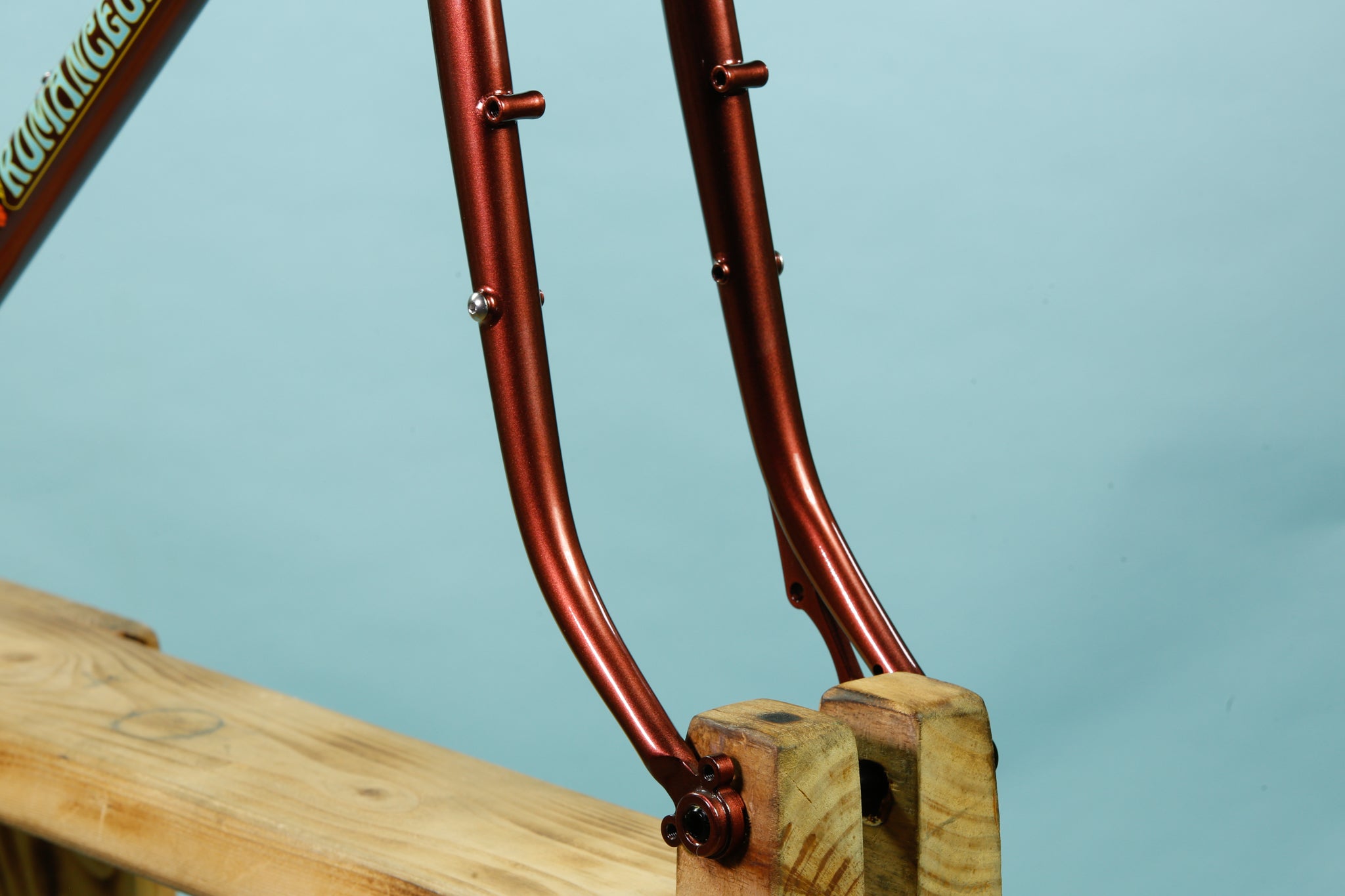

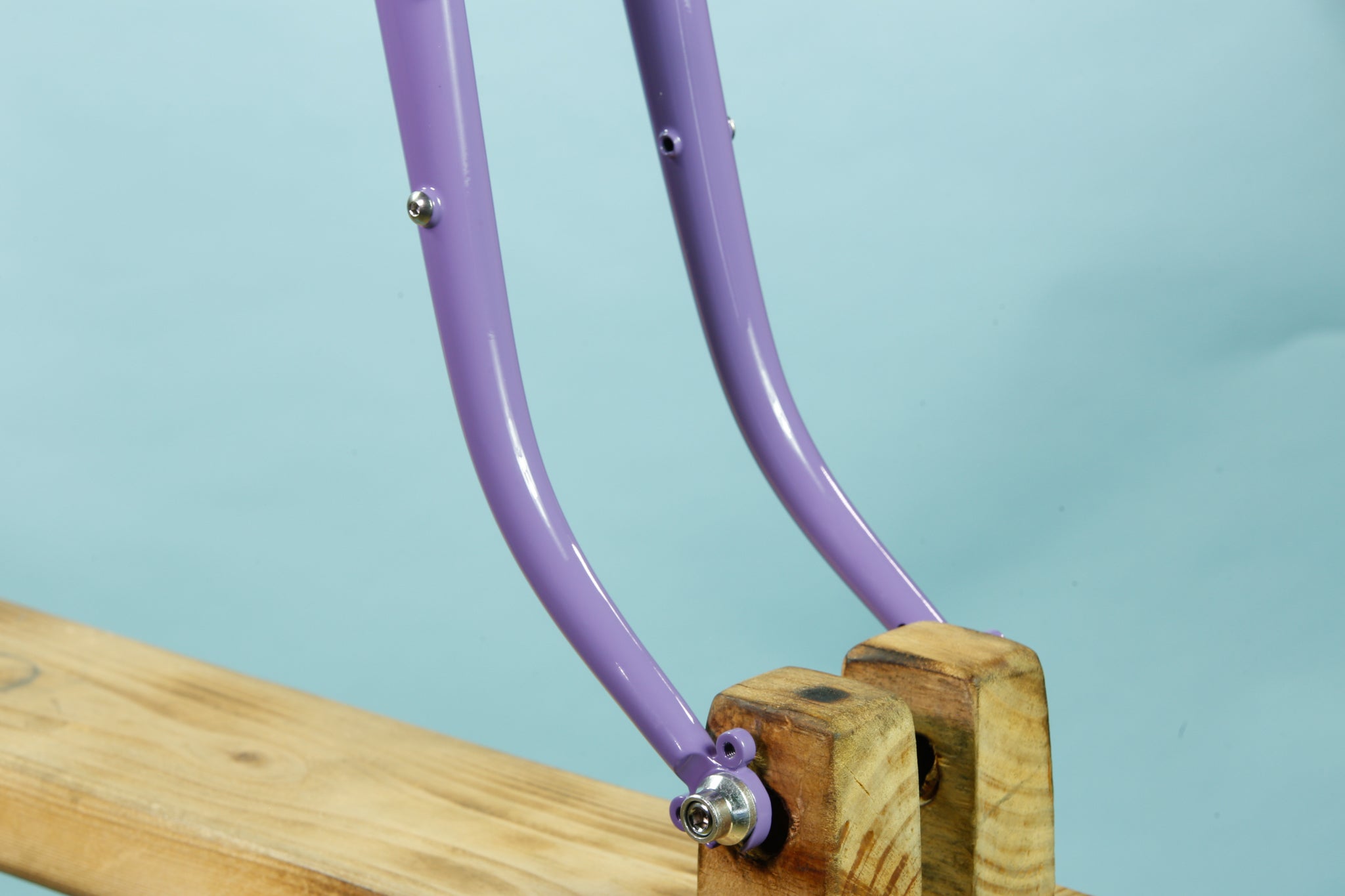

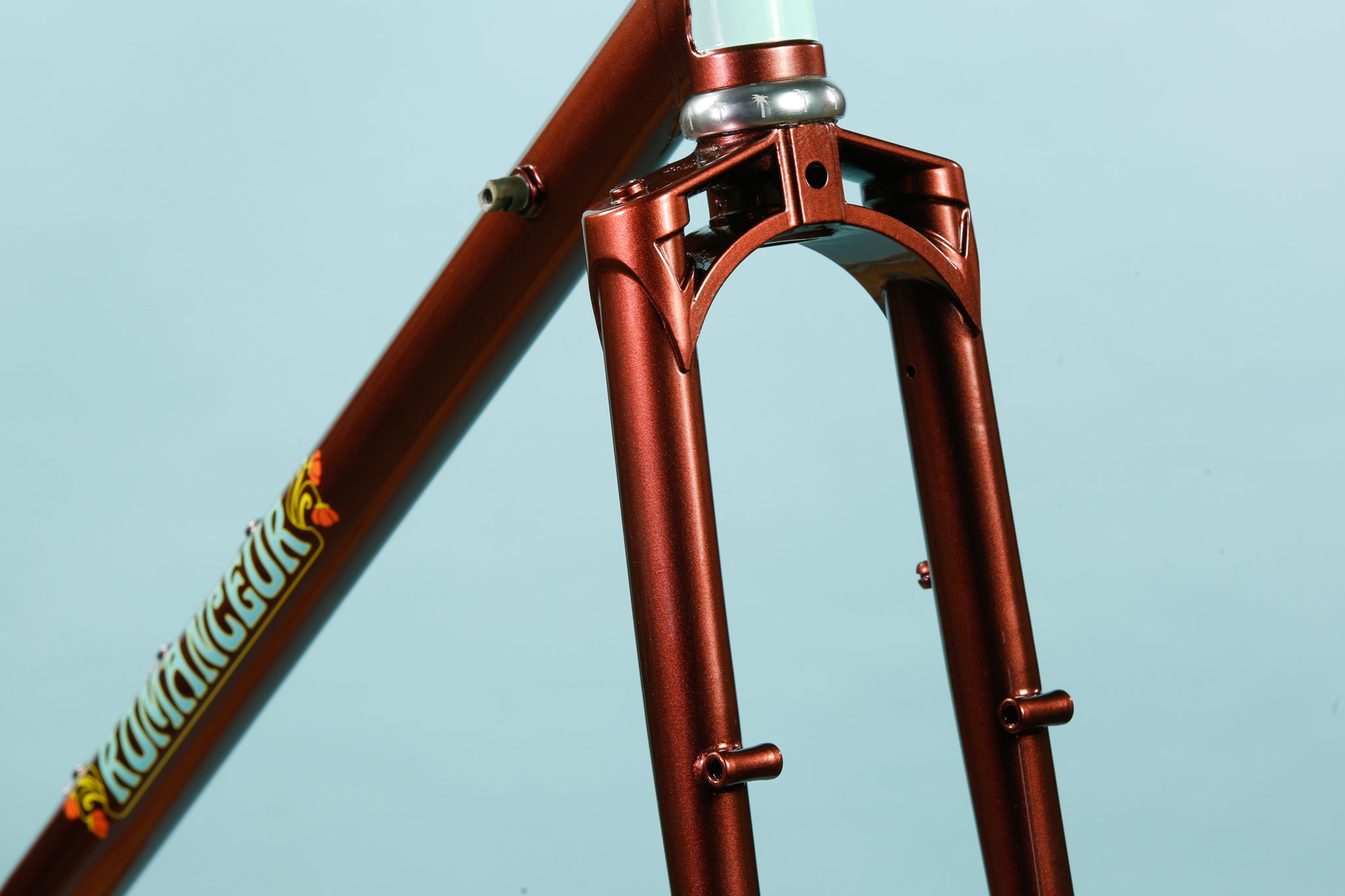

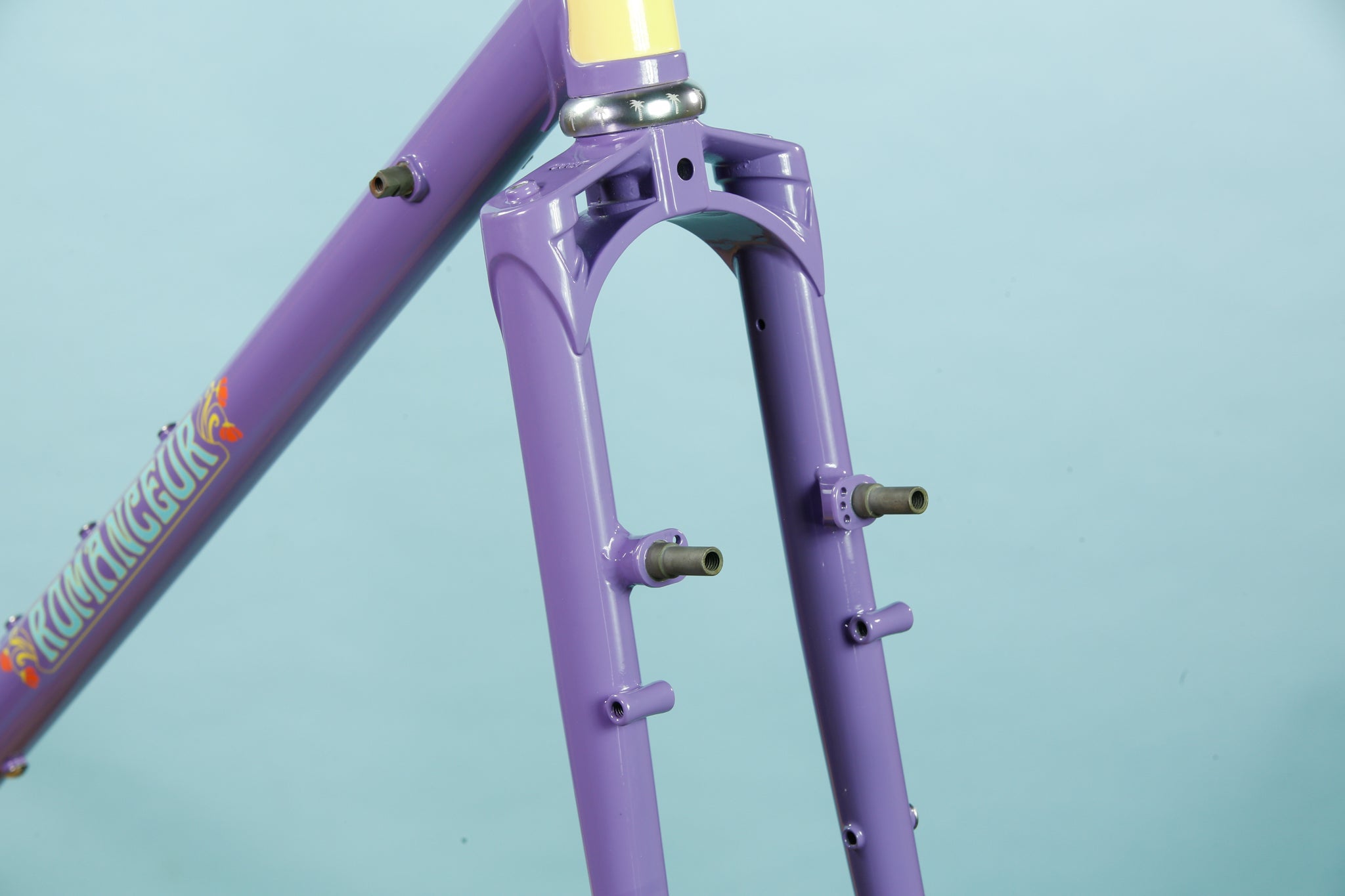

Fork Spacing- Disc: 12x100mm | Canti: 9x100mm
Rear End Spacing- Disc: 12x142mm | Canti: 9x130mm
Disc Front Axle Thread Pitch & Length- 1.5x120mm
Disc Rear Axle Thread Pitch & Length- 1.5x164mm
Seat Post Diameter- 27.2mm
Front Derailleur Clamp Diameter- 28.6mm
Weight- Disc Frame (55cm): 2.17kg (4lb 13oz) Fork: 1.19kg (2lb 10oz) | Canti Frame (58cm): 2.21kg (4lb 14oz) Fork: .99kg (2lb 3oz)
Geometry Chart (Metric) (Millimeters)
XS | Small | Medium | Large | XL | |
---|---|---|---|---|---|
Top Tube | |||||
Center to Center | 520 | 535 | 550 | 575 | 590 |
----------------------------- | |||||
Seat Tube | |||||
Center to Center | 505 | 520 | 550 | 580 | 620 |
----------------------------- | |||||
Head Tube Angle | 72º | 72º | 73º | 73º | 73º |
Seat Tube Angle | 73º | 73º | 72º | 72º | 72º |
----------------------------- | |||||
Head Tube | |||||
Length | 106 | 113 | 135 | 165 | 204 |
Stack from Bottom Bracket | 517 | 521 | 551 | 580 | 618 |
Reach from Bottom Bracket | 365 | 370 | 374 | 387 | 390 |
----------------------------- | |||||
Chainstay Length | 450 | 450 | 450 | 450 | 450 |
----------------------------- | |||||
Bottom Bracket | |||||
Height | 275 | 275 | 275 | 275 | 275 |
Drop | 65 | 65 | 65 | 65 | 65 |
----------------------------- | |||||
Standover | 772 | 786 | 812 | 841 | 879 |
----------------------------- | |||||
Rake | 65 | 65 | 65 | 65 | 65 |
Trail | 42 | 42 | 42 | 42 | 42 |
----------------------------- | |||||
Wheelbase | 1025 | 1035 | 1039 | 1057 | 1072 |
