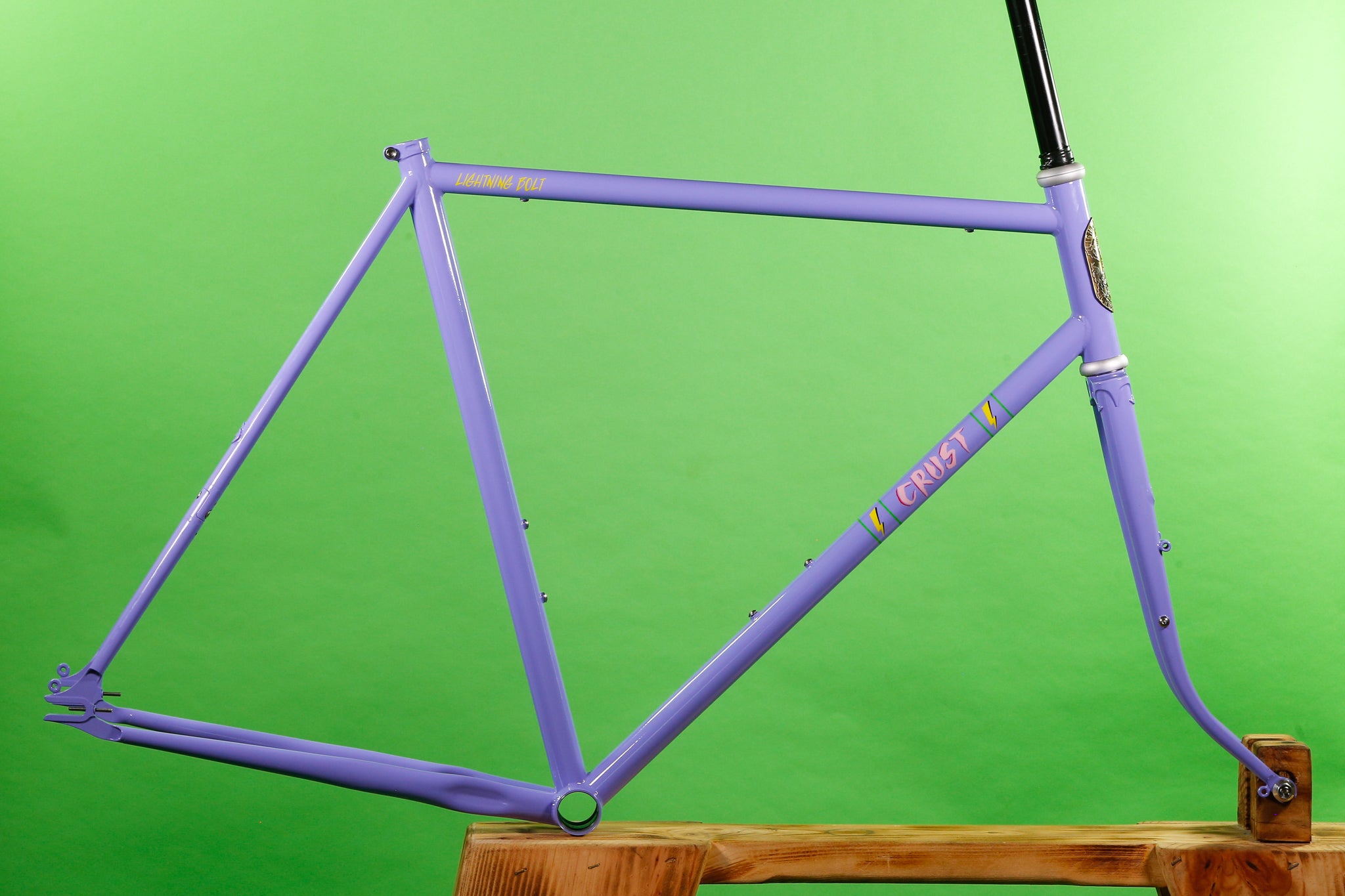

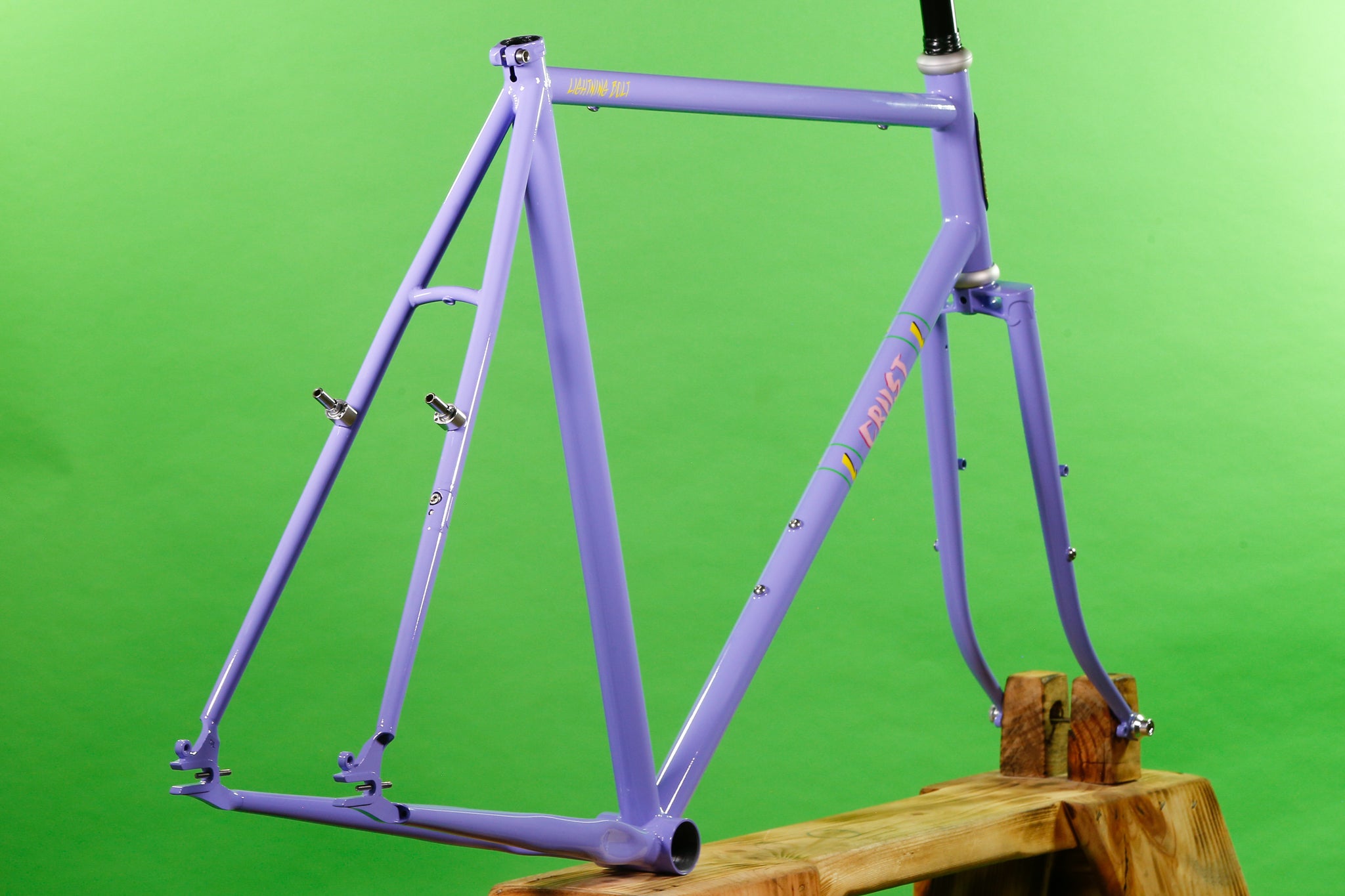

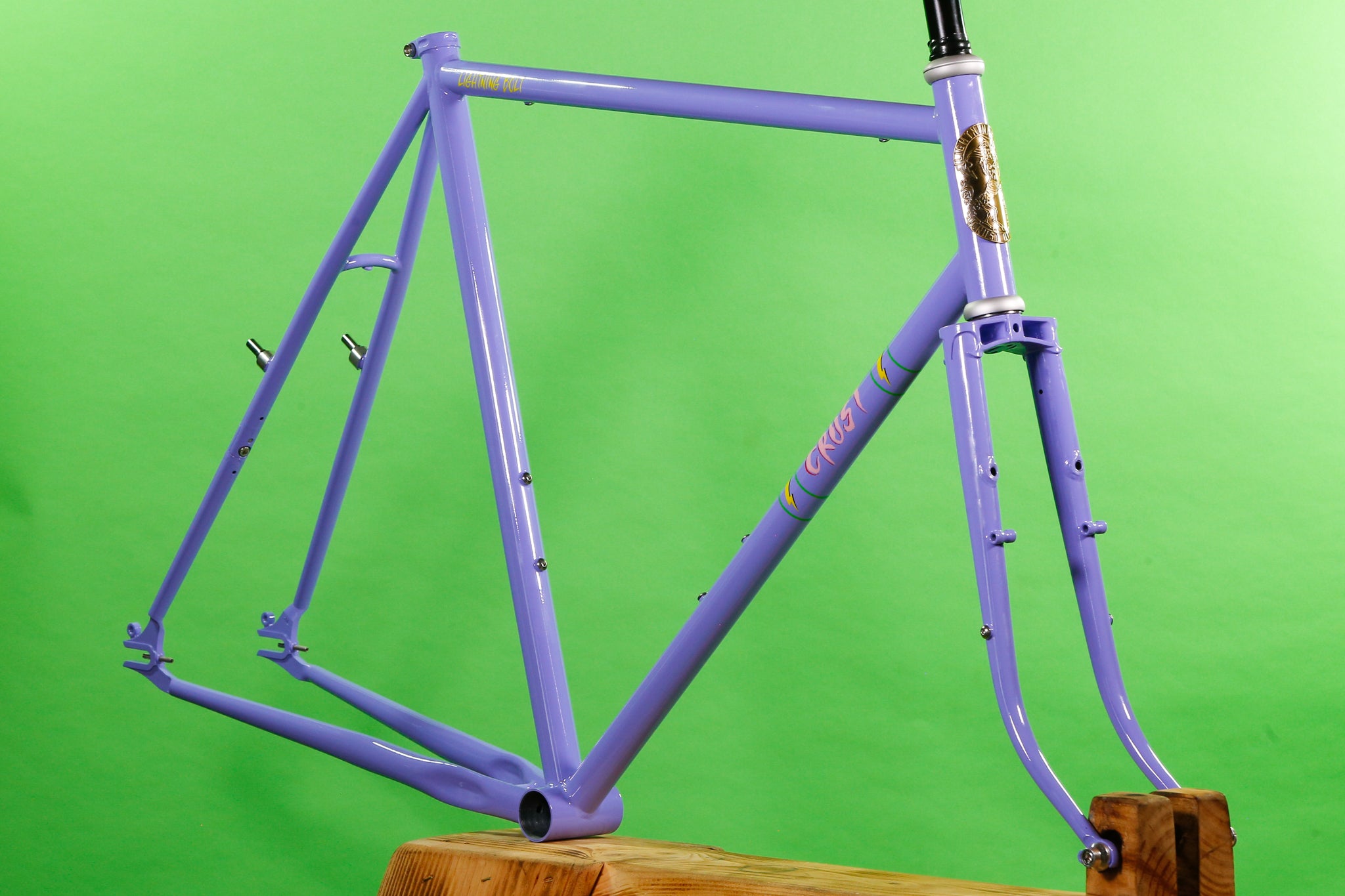

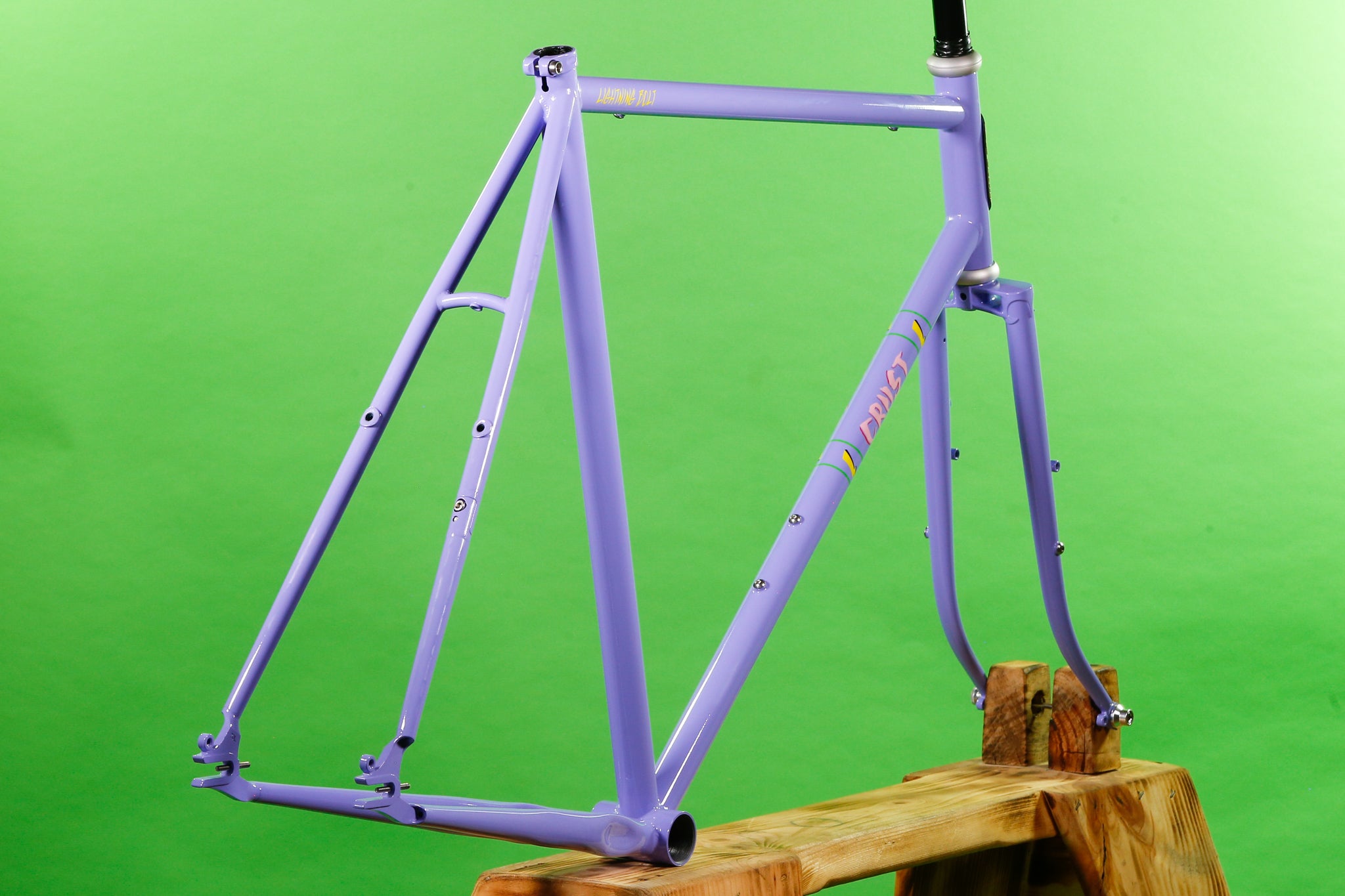

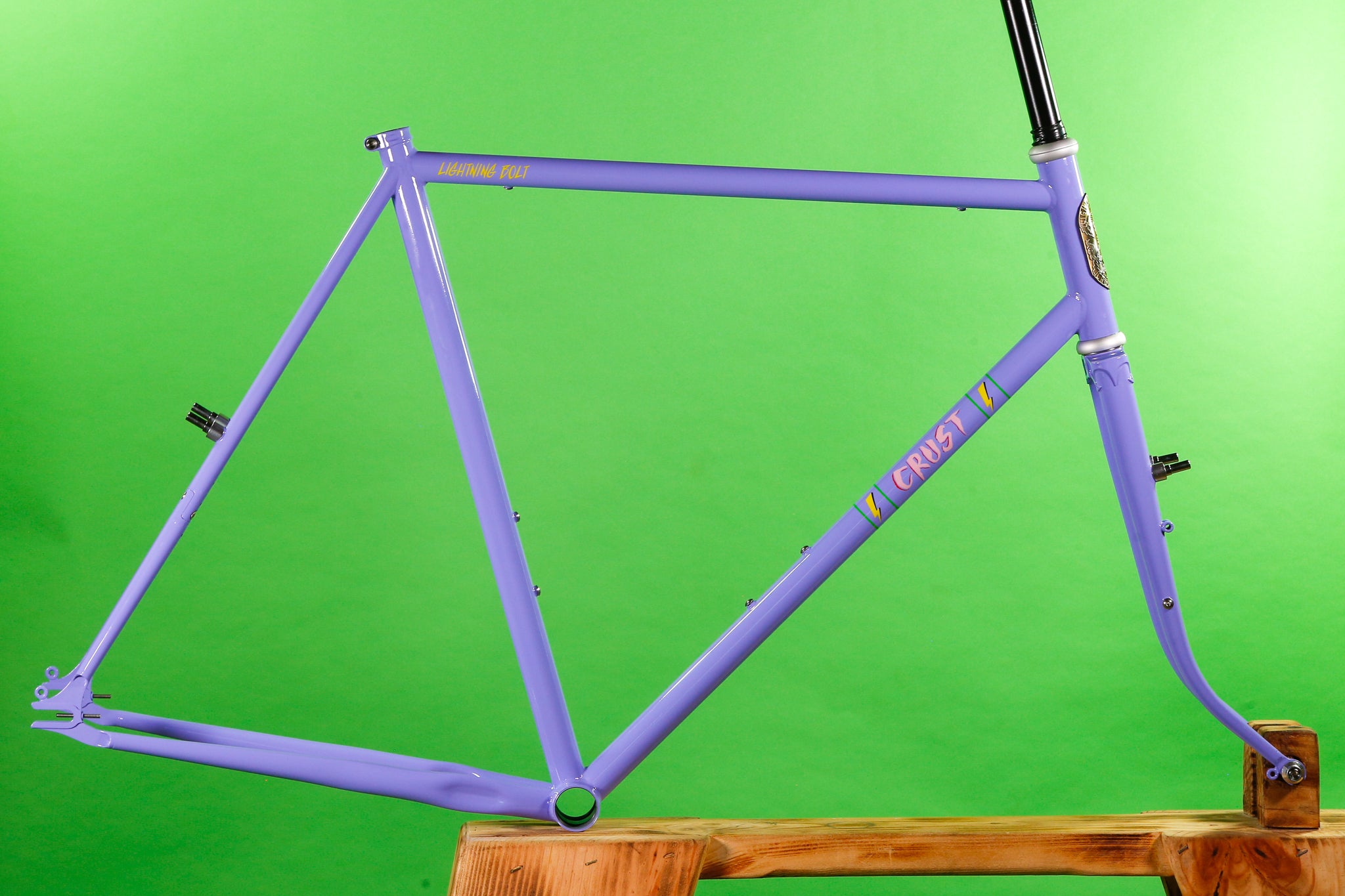

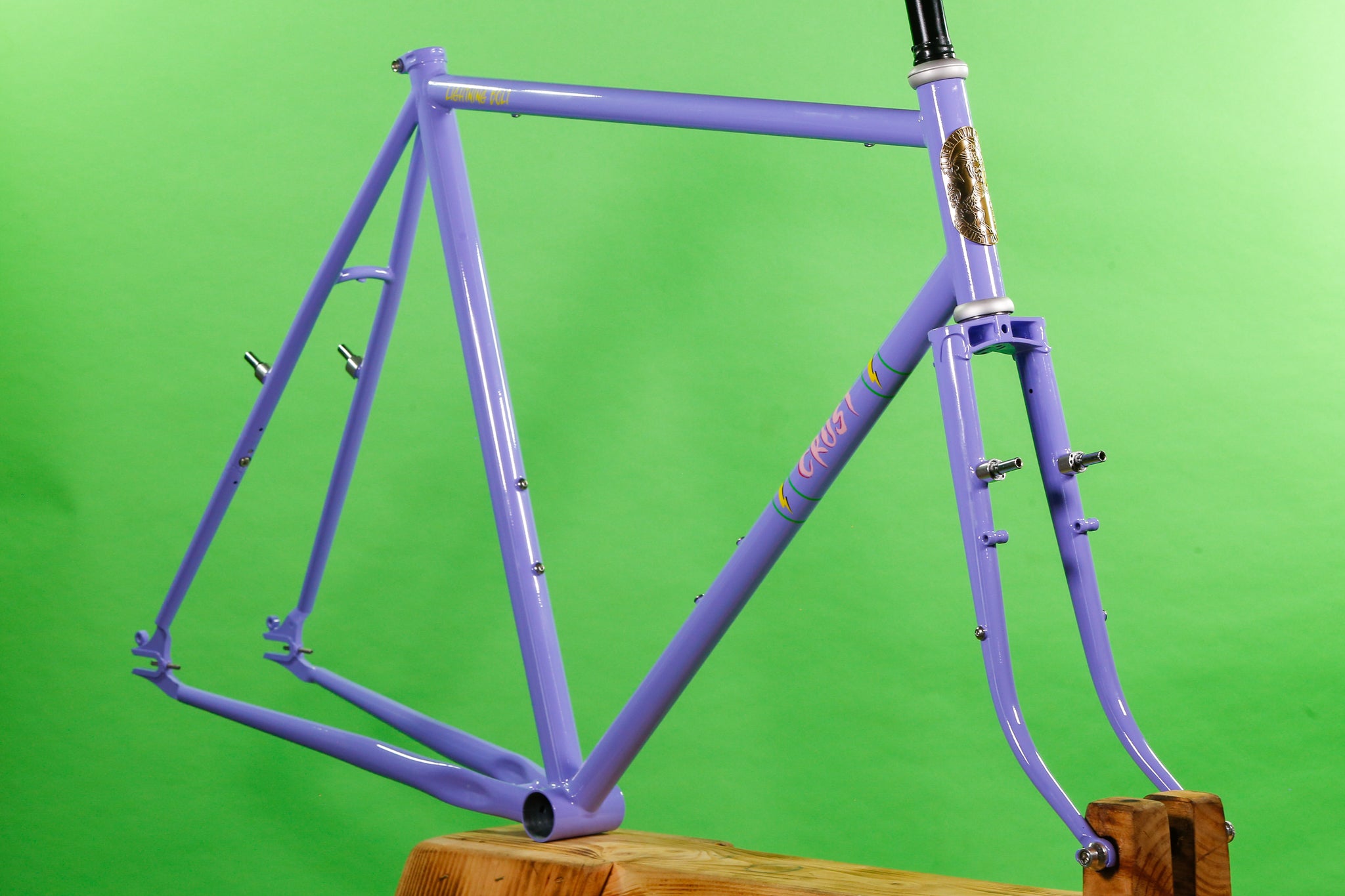

The Single Speed Lightning Bolt shares the same geometry with the other Bolts, but opposed to having vertical or thru axle dropouts it has rear facing horizontal dropouts. It also has 120mm rear spacing to accommodate your typical fixed/ flip flop hub. It is still designed around a 650b wheel like the other two, but can be set up 700c with a 35c max tire size. You can only set it up with brakes running 650b.

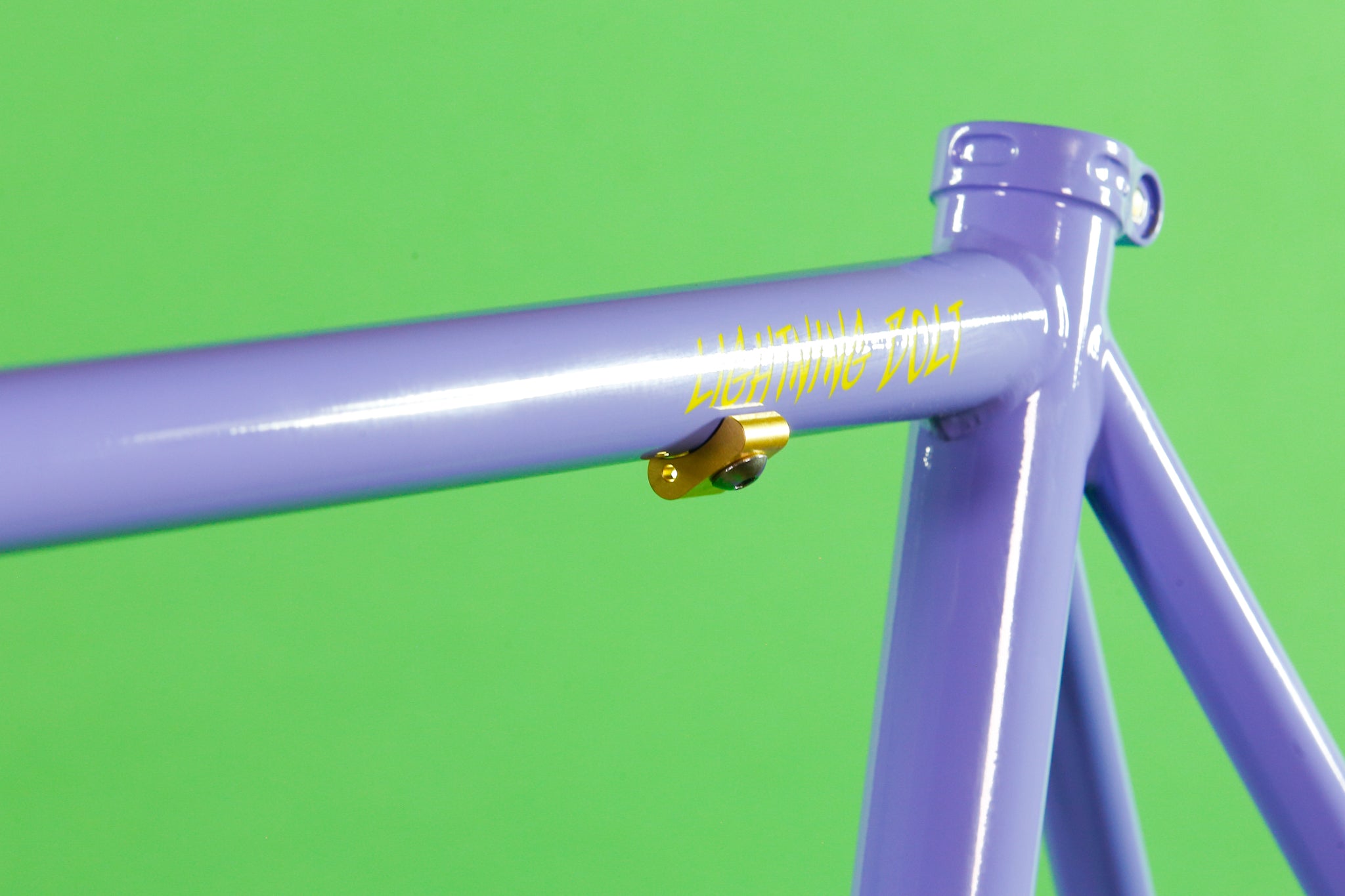

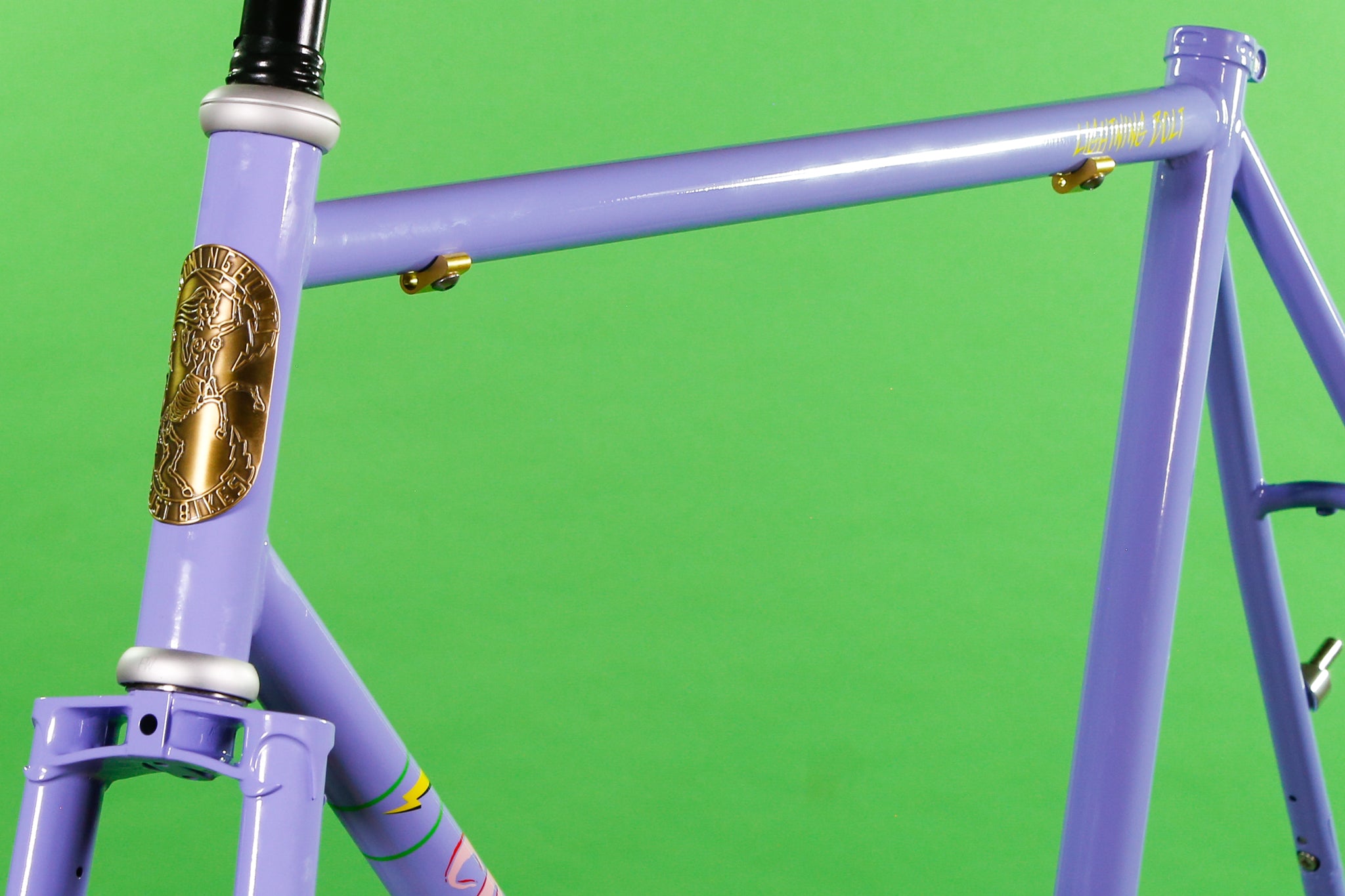

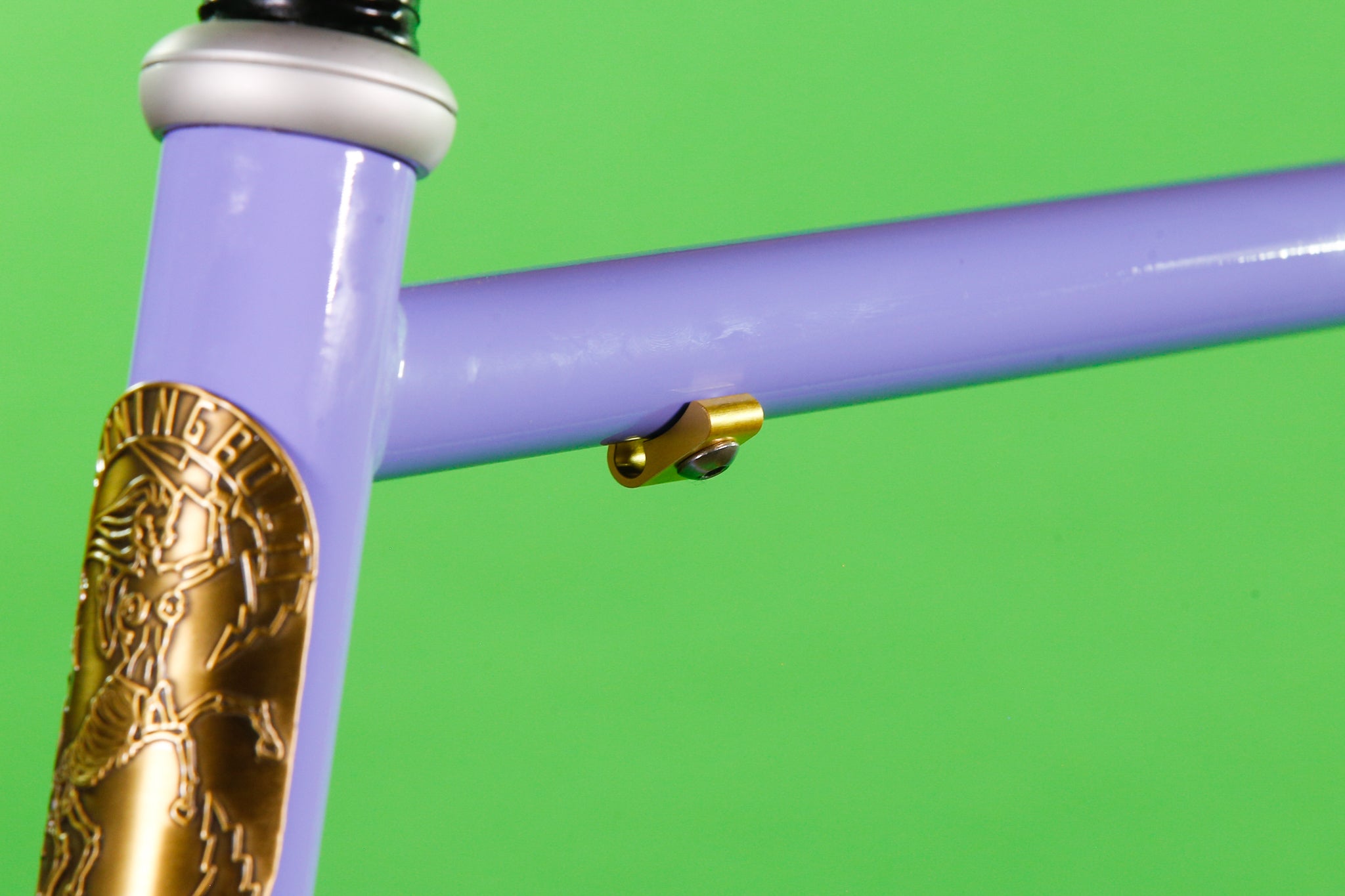

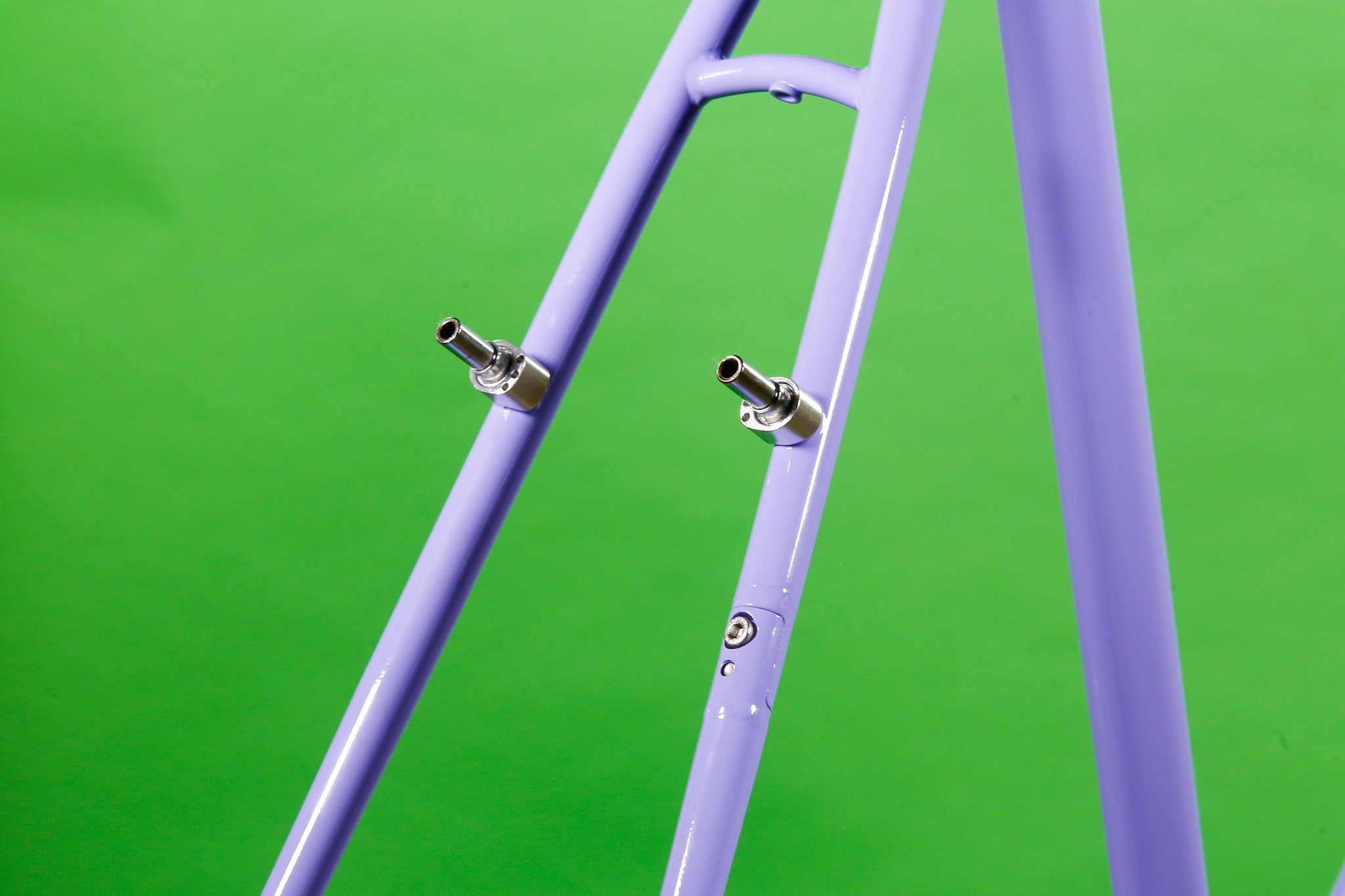

The Single Speed Bolt now features removable Canti/V-Brake Mounts and cable guides! The posts are welded in the "650b Position". So if you want to run 700c you'll have to figure out a different braking scenario.
It makes for a super fun Randonneur style bike, commuter, or all-around-do-whatever bike.
Build Notes:
If you aren't too keen on the fixed/ freewheel single speed life, you could also set this bike up with an internally geared hub. Orrr if you want to keep it real simple and still have a brake you could just throw a coaster brake on the back. The possibilities are numerous.
Designed around a 650b Wheel with 48 being the max tire size. You can run 700c wheels with 35 being your max tire size.
You have to bump down to a 650x42b if you want to run a set of fenders.
It is belt drive compatible and has a two bolt coupler in the drive side seat stay to sneak a belt through.
This frame is has a 1" THREADLESS head tube/ steerer tube.
We do not recommend you running more than ~40mm of spacers. If you need more than that, you should consider sizing up.
Recommended square taper BB length w/ SS crank is ~107mm
ED Coated to help protect it from the elements and inhibit internal corrosion. This doesn't mean you're free to ride it into the ocean though.
HEADSET NOT INCLUDED
Details:
Handmade in Taiwan using Heat Treated Chromoly
Tig Welded
Color- Lilac
Sizes- Small 52cm | Medium 56cm | Large 59cm | Extra Large 61cm

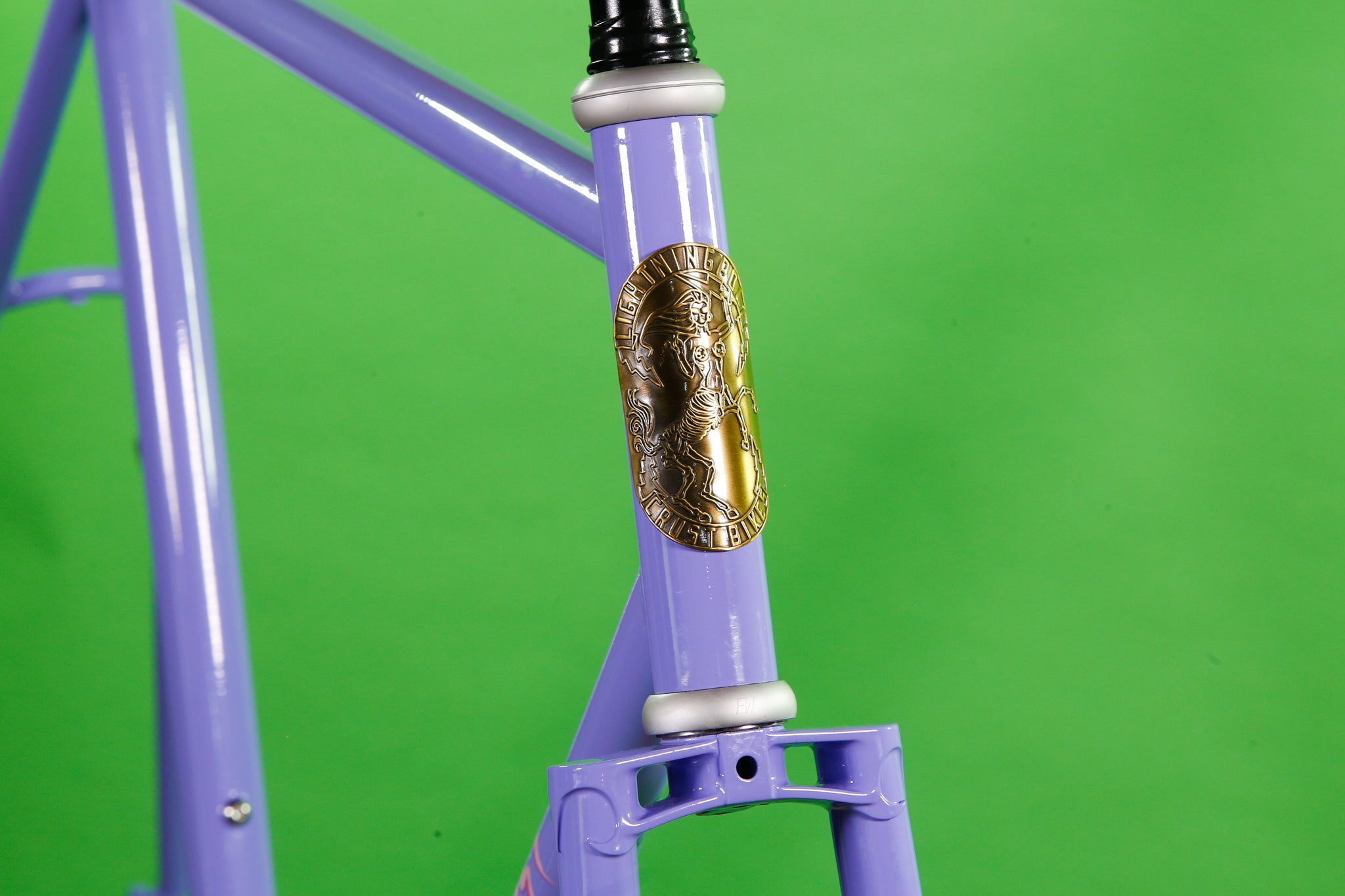

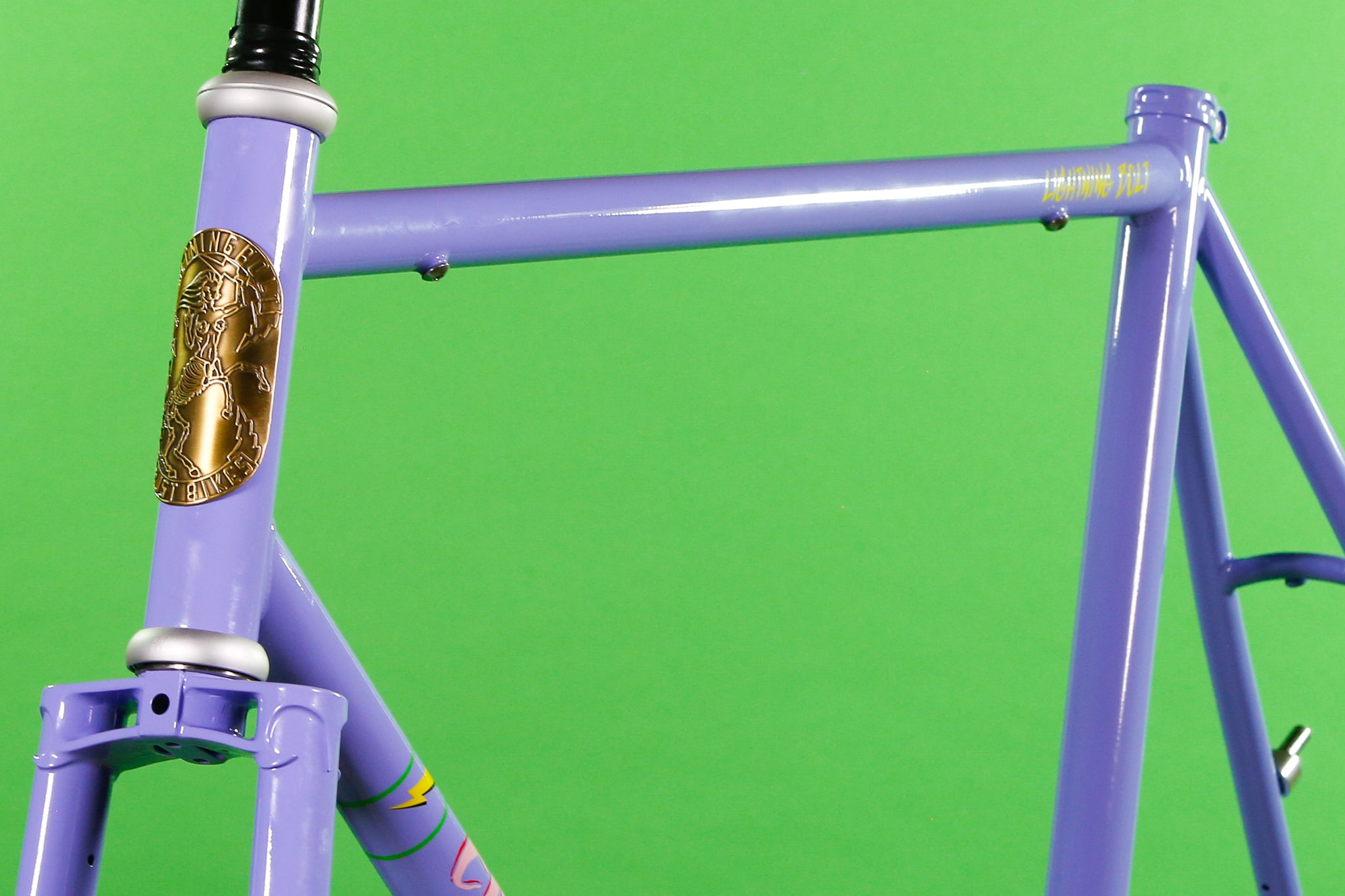

Head Tube Diameter- 1" (Threadless Steerer)

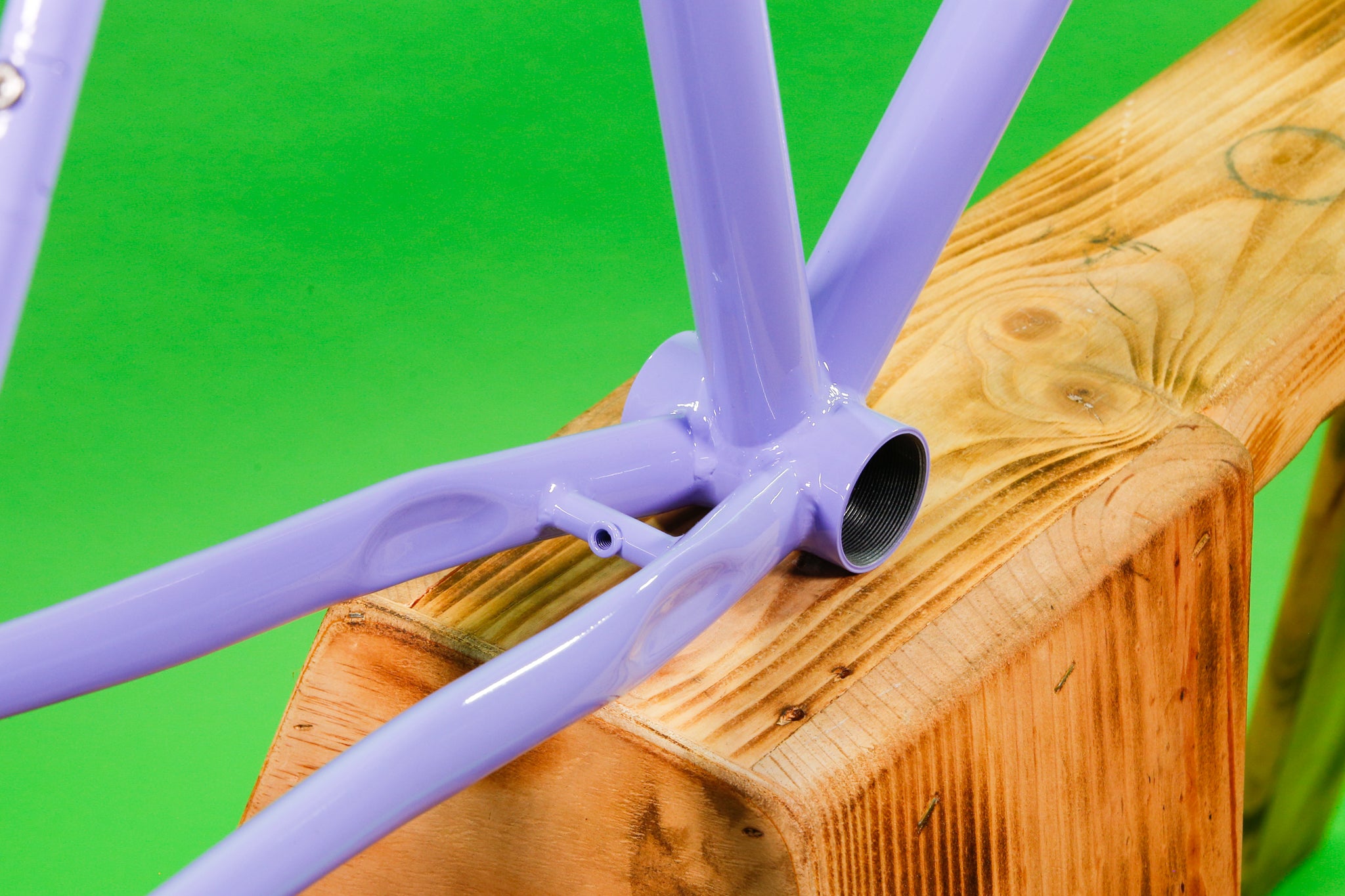

Bottom Bracket- 68mm English (BSA) Threaded
Steerer Tube Length- 400mm

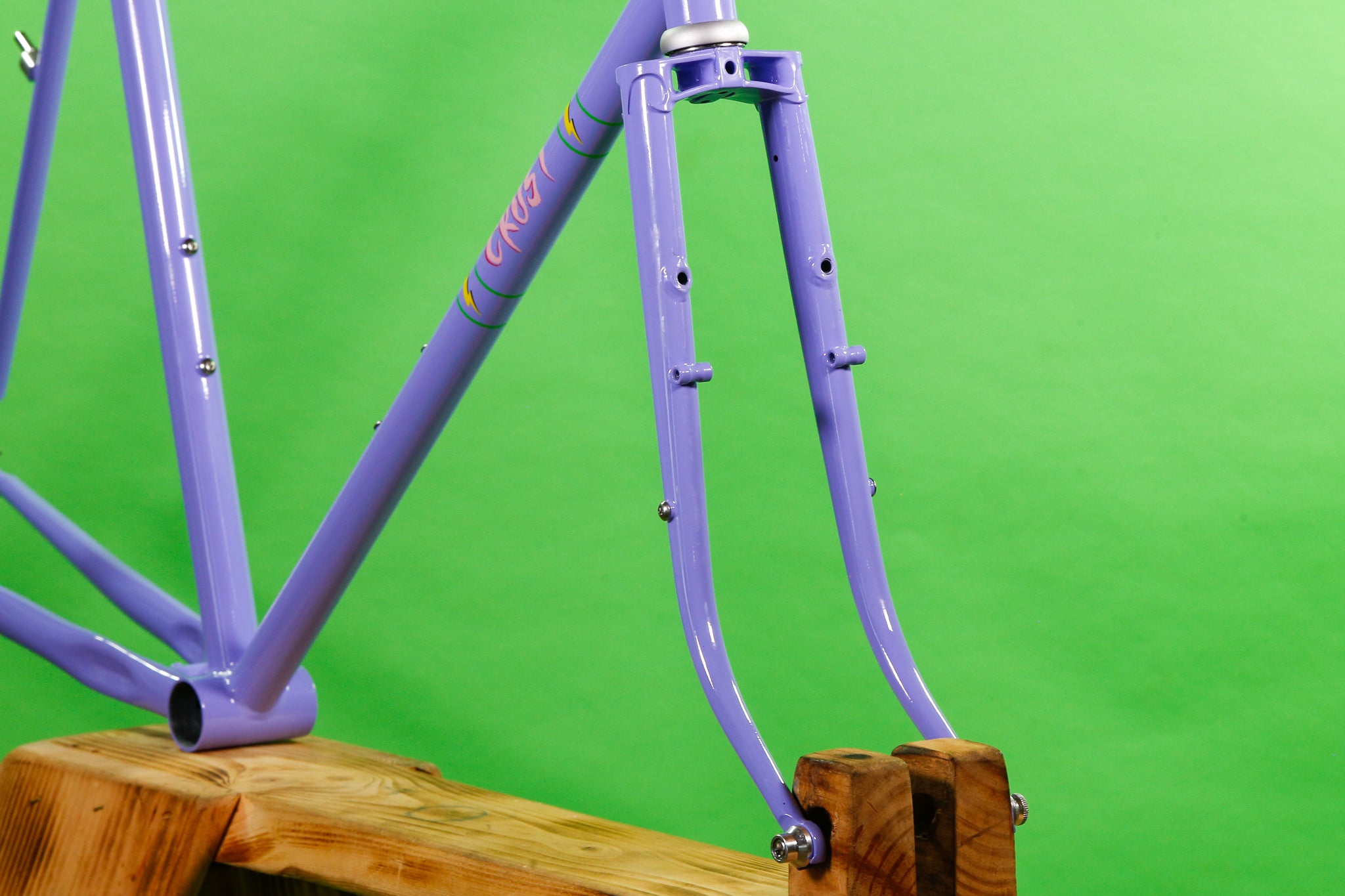

Fork Spacing- 9x100mm w/ QR Dropouts

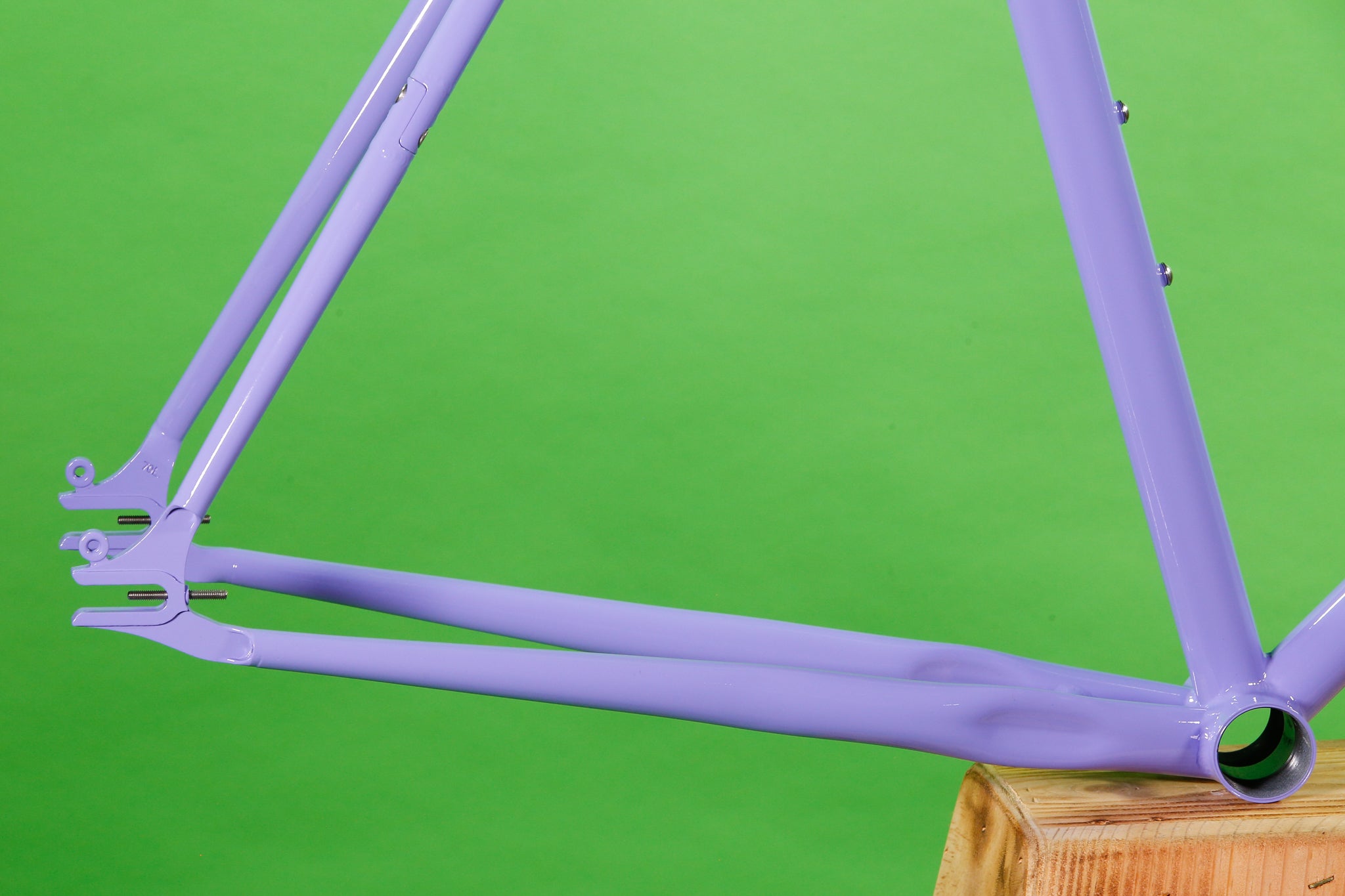

Rear End Spacing- 120mm w/ Rear Facing Horizontal Dropouts
Seat Post Diameter- 27.2mm
Weight- Frame (Medium)- 2.05kg or 4lbs 9oz | Fork (Uncut Steerer)- 1.03kg or 2lbs 4oz
Some Ideas of how to use your Single Speed Lightning Bolt:
Geometry Chart (Metric) (Millimeters)
| XS | Small | Medium | Large | XL | |
|---|---|---|---|---|---|
| Top Tube | |||||
| Center to Center | 520 | 535 | 550 | 575 | 590 |
| ----------------------------- | |||||
| Seat Tube | |||||
| Center to Center | 505 | 520 | 550 | 580 | 610 |
| Center to Top | 535 | 550 | 580 | 610 | 640 |
| ----------------------------- | |||||
| Head Tube Angle | 72º | 72º | 73º | 73º | 73º |
| Seat Tube Angle | 73º | 73º | 72º | 72º | 72º |
| ----------------------------- | |||||
| Head Tube | |||||
| Length | 114 | 129 | 152 | 182 | 210 |
| Stack from Bottom Bracket | 515 | 529 | 555 | 584 | 610 |
| Reach from Bottom Bracket | 363 | 373 | 370 | 385 | 392 |
| ----------------------------- | |||||
| Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| ----------------------------- | |||||
| Bottom Bracket | |||||
| Height | 279 | 279 | 279 | 279 | 279 |
| Drop | 64 | 64 | 64 | 64 | 64 |
| ----------------------------- | |||||
| Standover | 775 | 789 | 815 | 844 | 870 |
| ----------------------------- | |||||
| Rake | 65 | 65 | 65 | 65 | 65 |
| Trail | 42 | 42 | 37 | 37 | 37 |
| ----------------------------- | |||||
| Wheelbase | 998 | 1013 | 1008 | 1032 | 1047 |
